Local

This section is intended to walk you through the COMPSs usage in local machines.

Executing COMPSs applications

Prerequisites

Prerequisites vary depending on the application’s code language: for Java applications the users need to have a jar archive containing all the application classes, for Python applications there are no requirements and for C/C++ applications the code must have been previously compiled by using the compss_build_app command.

For further information about how to develop COMPSs applications please refer to 🏗️ Application development.

Runcompss command

COMPSs applications are executed using the runcompss command:

compss@bsc:~$ runcompss [options] application_name [application_arguments]

The application name must be the fully qualified name of the application in Java, the path to the .py file containing the main program in Python and the path to the master binary in C/C++.

The application arguments are the ones passed as command line to main application. This parameter can be empty.

The runcompss command allows the users to customize a COMPSs execution by specifying different options. For clarity purposes, parameters are grouped in Runtime configuration, Tools enablers and Advanced options.

$ runcompss -h

Usage: /opt/COMPSs/Runtime/scripts/user/runcompss [options] application_name application_arguments

* Options:
  General:
    --help, -h                              Print this help message

    --opts                                  Show available options

    --version, -v                           Print COMPSs version

  Tools enablers:
    --graph=<bool>, --graph, -g             Generation of the complete graph (true/false)
                                            When no value is provided it is set to true
                                            Default: false
    -t, --tracing[=<value>]                 Set generation of traces.
                                            Default: false
                                            When no value is provided, tracing is enabled with the default backend ("extrae").
                                            Supported values:
                                              - true|false                Enable tracing using extrae's backend or disable.
                                              - <backend>[,<backend>...]  Comma-separated list of tracing backends
                                                    (e.g., "extrae,monitor").
    --monitoring=<int>, --monitoring, -m    Period between monitoring samples (milliseconds)
                                            When no value is provided it is set to 2000
                                            Default: 0
    --external_debugger=<int>,
    --external_debugger                     Enables external debugger connection on the specified port (or 9999 if empty)
                                            Default: false
    --jmx_port=<int>                        Enable JVM profiling on specified port

  Runtime configuration options:
    --task_execution=<compss|storage>       Task execution under COMPSs or Storage.
                                            Default: compss
    --storage_impl=<string>                 Path to an storage implementation. Shortcut to setting pypath and classpath. See Runtime/storage in your installation folder.
    --storage_conf=<path>                   Path to the storage configuration file
                                            Default: null
    --project=<path>                        Path to the project XML file
                                            Default: /opt/COMPSs//Runtime/configuration/xml/projects/default_project.xml
    --resources=<path>                      Path to the resources XML file
                                            Default: /opt/COMPSs//Runtime/configuration/xml/resources/default_resources.xml
    --socket=<string>, --socket             Run the application in client mode. Optional socket path to bind.
    --socket=<string>, --socket             Run the application in client mode. Optional socket path to bind.
    --lang=<name>                           Language of the application (java/c/python/r)
                                            Default: Inferred is possible. Otherwise: java
    --summary                               Displays a task execution summary at the end of the application execution
                                            Default: false
    --log_level=<level>, --debug, -d        Set the debug level: off | info | api | debug | trace
                                            Warning: Off level compiles with -O2 option disabling asserts and __debug__
                                            Default: off

  Advanced options:
    --extrae_config_file=<path>             Sets a custom extrae config file. Must be in a shared disk between all COMPSs workers.
                                            Default: /opt/COMPSs//Runtime/configuration/xml/tracing/extrae_basic.xml
    --extrae_config_file_python=<path>      Sets a custom extrae config file for python. Must be in a shared disk between all COMPSs workers.
                                            Default: null
    --trace_label=<string>                  Add a label in the generated trace file. Only used in the case of tracing is activated.
                                            Default: Application name
    --tracing_task_dependencies=<bool>      Adds communication lines for the task dependencies (true/false)
                                            Default: false
    --generate_trace=<bool>                 Converts the events register into a trace file. Only used in the case of activated tracing.
                                            Default: true
    --delete_trace_packages=<bool>          If true, deletes the tracing packages created by the run.
                                            Default: true. Automatically, disabled if the trace is not generated.
    --custom_threads=<bool>                 Threads in the trace file are re-ordered and customized to indicate the function of the thread.
                                            Only used when the tracing is activated and a trace file generated.
                                            Default: true
    --comm=<ClassName>                      Class that implements the adaptor for communications
                                            Supported adaptors:
                                                  ├── es.bsc.compss.nio.master.NIOAdaptor
                                                  └── es.bsc.compss.gat.master.GATAdaptor
                                            Default: es.bsc.compss.nio.master.NIOAdaptor
    --conn=<className>                      Class that implements the runtime connector for the cloud
                                            Supported connectors:
                                                  ├── es.bsc.compss.connectors.DefaultSSHConnector
                                                  └── es.bsc.compss.connectors.DefaultNoSSHConnector
                                            Default: es.bsc.compss.connectors.DefaultSSHConnector
    --streaming=<type>                      Enable the streaming mode for the given type.
                                            Supported types: FILES, OBJECTS, PSCOS, ALL, NONE
                                            Default: NONE
    --streaming_master_name=<str>           Use an specific streaming master node name.
                                            Default: Empty
    --streaming_master_port=<int>           Use an specific port for the streaming master.
                                            Default: Empty
    --scheduler=<className>                 Class that implements the Scheduler for COMPSs
                                            Supported schedulers:
                                                  ├── es.bsc.compss.components.impl.TaskScheduler
                                                  ├── es.bsc.compss.scheduler.orderstrict.fifo.FifoTS
                                                  ├── es.bsc.compss.scheduler.lookahead.fifo.FifoTS
                                                  ├── es.bsc.compss.scheduler.lookahead.lifo.LifoTS
                                                  ├── es.bsc.compss.scheduler.lookahead.locality.LocalityTS
                                                  ├── es.bsc.compss.scheduler.lookahead.successors.constraintsfifo.ConstraintsFifoTS
                                                  ├── es.bsc.compss.scheduler.lookahead.mt.successors.constraintsfifo.ConstraintsFifoTS
                                                  ├── es.bsc.compss.scheduler.lookahead.successors.fifo.FifoTS
                                                  ├── es.bsc.compss.scheduler.lookahead.mt.successors.fifo.FifoTS
                                                  ├── es.bsc.compss.scheduler.lookahead.successors.lifo.LifoTS
                                                  ├── es.bsc.compss.scheduler.lookahead.mt.successors.lifo.LifoTS
                                                  ├── es.bsc.compss.scheduler.lookahead.successors.locality.LocalityTS
                                                  ├── es.bsc.compss.scheduler.lookahead.mt.successors.locality.LocalityTS
                                                  └── es.bsc.compss.scheduler.predefined.PredefinedTS
                                            Default in runcompss: es.bsc.compss.scheduler.lookahead.locality.LocalityTS
                                            Default in enqueue_compss shared disk: es.bsc.compss.scheduler.lookahead.mt.successors.fifo.FifoTS
                                            Default in enqueue_compss local disk: es.bsc.compss.scheduler.lookahead.mt.successors.locality.LocalityTS
    --scheduler_config_file=<path>          Path to the file which contains the scheduler configuration.
                                            Default: Empty
    --checkpoint=<className>                Class that implements the Checkpoint Management policy
                                            Supported checkpoint policies:
                                                  ├── es.bsc.compss.checkpoint.policies.CheckpointPolicyInstantiatedGroup
                                                  ├── es.bsc.compss.checkpoint.policies.CheckpointPolicyPeriodicTime
                                                  ├── es.bsc.compss.checkpoint.policies.CheckpointPolicyFinishedTasks
                                                  └── es.bsc.compss.checkpoint.policies.NoCheckpoint
                                            Default: es.bsc.compss.checkpoint.policies.NoCheckpoint
    --checkpoint_params=<string>            Checkpoint configuration parameter.
                                            Default: Empty
    --checkpoint_folder=<path>              Checkpoint folder.
                                            Default: Mandatory parameter
    --library_path=<path>                   Non-standard directories to search for libraries (e.g. Java JVM library, Python library, C binding library)
                                            Default: Working Directory
    --classpath=<path>                      Path for the application classes / modules
                                            Default: Working Directory
    --appdir=<path>                         Path for the application class folder.
                                            Default: /home/user/gitlab/documentation/COMPSs_Manuals
    --pythonpath=<path>                     Additional folders or paths to add to the PYTHONPATH
                                            Default: /home/user/gitlab/documentation/COMPSs_Manuals
    --env_script=<path>                     Path to the script file where the application environment variables are defined.
                                            COMPSs sources this script before running the application.
                                            Default: Empty
    --log_dir=<path>                        Directory to store COMPSs log files (a .COMPSs/ folder will be created inside this location)
                                            Default: User home
    --master_working_dir=<path>             Use a specific directory to store COMPSs temporary files in master
                                            Default: <log_dir>/.COMPSs/<app_name>/tmpFiles
    --uuid=<int>                            Preset an application UUID
                                            Default: Automatic random generation
    --master_name=<string>                  Hostname of the node to run the COMPSs master
                                            Default: Empty
    --master_port=<int>                     Port to run the COMPSs master communications.
                                            Only for NIO adaptor
                                            Default: [43000,44000]
    --jvm_master_opts="<string>"            Extra options for the COMPSs Master JVM. Each option separated by "," and without blank spaces (Notice the quotes)
                                            Default: Empty
    --jvm_workers_opts="<string>"           Extra options for the COMPSs Workers JVMs. Each option separated by "," and without blank spaces (Notice the quotes)
                                            Default: -Xms256m,-Xmx1024m,-Xmn100m
    --cpu_affinity="<string>"               Sets the CPU affinity for the workers
                                            Supported options: disabled, automatic, dlb or user defined map of the form "0-8/9,10,11/12-14,15,16"
                                            Default: automatic
    --gpu_affinity="<string>"               Sets the GPU affinity for the workers
                                            Supported options: disabled, automatic, user defined map of the form "0-8/9,10,11/12-14,15,16"
                                            Default: automatic
    --fpga_affinity="<string>"              Sets the FPGA affinity for the workers
                                            Supported options: disabled, automatic, user defined map of the form "0-8/9,10,11/12-14,15,16"
                                            Default: automatic
    --fpga_reprogram="<string>"             Specify the full command that needs to be executed to reprogram the FPGA with the desired bitstream. The location must be an absolute path.
                                            Default: Empty
    --io_executors=<int>                    IO Executors per worker
                                            Default: 0
    --task_count=<int>                      Only for C/Python Bindings. Maximum number of different functions/methods, invoked from the application, that have been selected as tasks
                                            Default: 50
    --input_profile=<path>                  Path to the file which stores the input application profile
                                            Default: Empty
    --output_profile=<path>                 Path to the file to store the application profile at the end of the execution
                                            Default: Empty
    --PyObject_serialize=<bool>             Only for Python Binding. Enable the object serialization to string when possible (true/false).
                                            Default: false
    --persistent_worker_c=<bool>            Only for C Binding. Enable the persistent worker in c (true/false).
                                            Default: false
    --enable_external_adaptation=<bool>     Enable external adaptation. This option will disable the Resource Optimizer.
                                            Default: false
    --gen_coredump                          Enable master coredump generation
                                            Default: false
    --keep_workingdir                       Do not remove the worker working directory after the execution
                                            Default: false
    --python_interpreter=<string>           Python interpreter to use (python/python3).
                                            Default: python3 Version:
    --python_propagate_virtual_environment=<bool>  Propagate the master virtual environment to the workers (true/false).
                                                   Default: true
    --python_mpi_worker=<bool>              Use MPI to run the python worker instead of multiprocessing. (true/false).
                                            Default: false
    --python_memory_profile                 Generate a memory profile of the master.
                                            Default: false
    --python_worker_cache=<string>          Python worker CPU and GPU cache (false/cpu:10GB/gpu:25%).
                                            Only for NIO without mpi worker and python >= 3.8.
                                            Default: false
    --python_cache_profiler=<bool>          Python cache profiler (true/false).
                                            Only for NIO without mpi worker and python >= 3.8.
                                            Default: false
    --wall_clock_limit=<int>                Maximum duration of the application (in seconds).
                                            Default: 0
    --shutdown_in_node_failure=<bool>       Stop the whole execution in case of Node Failure.
                                            Default: false
    --provenance=<yaml>, --provenance, -p   Generate COMPSs workflow provenance data in RO-Crate format using a YAML configuration file. Automatically activates --graph.
                                            Default: ro-crate-info.yaml
    --provenance_folder=<path>              Path where the workflow provenance will be generated
                                            Default: COMPSs_RO-Crate_[timestamp]
    --zip_provenance, -z                    Zip the resulting COMPSs RO-Crate
                                            Default: COMPSs_RO-Crate_[timestamp].zip

  * Application name:
    For Java applications:   Fully qualified name of the application
    For C applications:      Path to the master binary
    For Python applications: Path to the .py file containing the main program
    For R applications:      Path to the .R file containing the main program

  * Application arguments:
    Command line arguments to pass to the application. Can be empty.

Warning

The cpu_affinity feature is not available in macOS distributions. Then, for all macOS executions the flag --cpu_affinity=disabled must be specified, no matter if they are Java, Python or C/C++.

Running a COMPSs application

Before running COMPSs applications the application files must be in the CLASSPATH. Thus, when launching a COMPSs application, users can manually set the CLASSPATH environment variable or can add the --classpath option to the runcompss command.

The next three sections provide specific information for launching COMPSs applications developed in different code languages (Java, Python and C/C++). For clarity purposes, we will use the Simple application (developed in Java, Python and C++) available in the https://github.com/bsc-wdc/tutorial_apps repository. This application takes an integer as input parameter and increases it by one unit using a task. For further details about the codes please refer to 💡 Sample Applications.

Tip

For further information about applications scheduling refer to 📜 Schedulers.

Running Java applications

A Java COMPSs application can be launched through the following command:

compss@bsc:~$ cd tutorial_apps/java/simple/jar/
compss@bsc:~/tutorial_apps/java/simple/jar$ runcompss simple.Simple <initial_number>

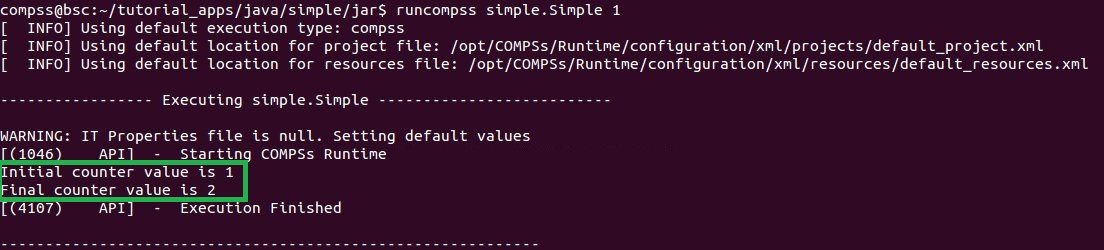

compss@bsc:~/tutorial_apps/java/simple/jar$ runcompss simple.Simple 1
[  INFO] Using default execution type: compss
[  INFO] Using default location for project file: /opt/COMPSs/Runtime/configuration/xml/projects/default_project.xml
[  INFO] Using default location for resources file: /opt/COMPSs/Runtime/configuration/xml/resources/default_resources.xml
[  INFO] Using default language: java

----------------- Executing simple.Simple --------------------------

WARNING: COMPSs Properties file is null. Setting default values
[(1066)    API]  -  Starting COMPSs Runtime v<version>
Initial counter value is 1
Final counter value is 2
[(4740)    API]  -  Execution Finished

------------------------------------------------------------

In this first execution we use the default value of the --classpath option to automatically add the jar file to the CLASSPATH (by executing runcompss in the directory which contains the jar file). However, we can explicitly do this by exporting the CLASSPATH variable or by providing the --classpath value. Next, we provide two more ways to perform the same execution:

compss@bsc:~$ export CLASSPATH=$CLASSPATH:/home/compss/tutorial_apps/java/simple/jar/simple.jar
compss@bsc:~$ runcompss simple.Simple <initial_number>

compss@bsc:~$ runcompss --classpath=/home/compss/tutorial_apps/java/simple/jar/simple.jar \
                        simple.Simple <initial_number>

Running Python applications

To launch a COMPSs Python application users have to provide the --lang=python option to the runcompss command. If the extension of the main file is a regular Python extension (.py or .pyc) the runcompss command can also infer the application language without specifying the lang flag.

compss@bsc:~$ cd tutorial_apps/python/simple/
compss@bsc:~/tutorial_apps/python/simple$ runcompss --lang=python ./simple.py <initial_number>

compss@bsc:~/tutorial_apps/python/simple$ runcompss simple.py 1
[  INFO] Using default execution type: compss
[  INFO] Using default location for project file: /opt/COMPSs/Runtime/configuration/xml/projects/default_project.xml
[  INFO] Using default location for resources file: /opt/COMPSs/Runtime/configuration/xml/resources/default_resources.xml
[  INFO] Inferred PYTHON language

----------------- Executing simple.py --------------------------

WARNING: COMPSs Properties file is null. Setting default values
[(616)    API]  -  Starting COMPSs Runtime v<version>
Initial counter value is 1
Final counter value is 2
[(4297)    API]  -  Execution Finished

------------------------------------------------------------

Attention

Executing without debug (e.g. default log level or --log_level=off) uses -O2 compiled sources, disabling asserts and __debug__.

Alternatively, it is possible to execute the a COMPSs Python application using pycompss as module:

compss@bsc:~$ python -m pycompss <runcompss_flags> <application> <application_parameters>

Consequently, the previous example could also be run as follows:

compss@bsc:~$ cd tutorial_apps/python/simple/
compss@bsc:~/tutorial_apps/python/simple$ python -m pycompss simple.py <initial_number>

If the -m pycompss is not set, the application will be run ignoring all PyCOMPSs imports, decorators and API calls, that is, sequentially.

In order to run a COMPSs Python application with a different interpreter, the runcompss command provides a specific flag:

compss@bsc:~$ cd tutorial_apps/python/simple/
compss@bsc:~/tutorial_apps/python/simple$ runcompss --python_interpreter=python3 ./simple.py <initial_number>

However, when using the pycompss module, it is inferred from the python used in the call:

compss@bsc:~$ cd tutorial_apps/python/simple/
compss@bsc:~/tutorial_apps/python/simple$ python3 -m pycompss simple.py <initial_number>

Finally, both runcompss and pycompss module provide a particular flag for virtual environment propagation (--python_propagate_virtual_environment=<bool>). This, flag is intended to activate the current virtual environment in the worker nodes when set to true.

Specific flags

Some of the runcompss flags are only for PyCOMPSs application execution:

--pythonpath=<path>

Additional folders or paths to add to the PYTHONPATH Default: /home/user

--PyObject_serialize=<bool>

Only for Python Binding. Enable the object serialization to string when possible (true/false). Default: false

--python_interpreter=<string>

Python interpreter to use (python/python2/python3). Default: “python” version

--python_propagate_virtual_environment=<true>

Propagate the master virtual environment to the workers (true/false). Default: true

--python_mpi_worker=<false>

Use MPI to run the python worker instead of multiprocessing. (true/false). Default: false

--python_memory_profile

Generate a memory profile of the master. Default: false

See: Memory Profiling

--python_worker_cache=<string>

Python worker cache (true/true:size/false). Only for NIO without mpi worker and python >= 3.8. Available for GPU if cupy installed. Default: false

See: Worker cache

--python_cache_profiler=<bool>

Python cache profiler (true/false). Only for NIO without mpi worker and python >= 3.8. Default: false

See: Worker cache profiling

Warning

For macOS systems, the flag --python_interpreter=/path_to/python must be passed to ensure the same Python version is used both in master and worker parts of the application (the application will crash otherwise). We recommend to use pyenv to manage the macOS installed Python versions. An example using pyenv would be: --python_interpreter=/Users/username/.pyenv/shims/python3 In addition, be careful with Xcode updates, since they can modify the Python system version.

Worker cache

The --python_worker_cache is used to enable a cache between processes on each worker node. More specifically, this flag enables a shared memory space between the worker processes, so that they can share objects between processes in order to leverage the deserialization overhead. If CUPY is installed the cache is enabled, the cupy.ndarrays will also be cacheables in each GPU memory.

The possible values are:

--python_worker_cache=false

Disable the cache (CPU/GPU). This is the default value.

--python_worker_cache=true

Enable the cache (CPU/GPU). The default cache size is 25% of the worker node memory. And the hard limited gpu cache size is 25% of the gpu memory.

--python_worker_cache=true:<SIZE>

Enable the cache with specific cache size (in bytes and only for CPU). Setting the gpu cache size is not yet supported.

During execution, each worker will try to store automatically the parameters and return objects, so that next tasks can make use of them without needing to deserialize from file.

Important

The supported objects to be stored in the cache is limited to: python primitives (int, float, bool, str (less than 10 Mb), bytes (less than 10 Mb) and None), lists (composed by python primitives), tuples (composed by python primitives), Numpy ndarrays and Cupy ndarrays.

It is important to take into account that storing the objects in cache has some non negligible overhead that can be representative, while getting objects from cache shows to be more efficient than deserialization. Consequently, the applications that most benefit from the cache are the ones that reuse many times the same objects.

Avoiding to store an object into the cache is possible by setting Cache to False into the @task decorator for the parameter. For example, Code 155 shows how to avoid caching the value parameter.

Code 155 Avoid parameter caching

from pycompss.api.task import task
from pycompss.api.parameter import *

@task(value={Cache: False})
def mytask(value):
    ....

Task return objects are also automatically stored into cache. To avoid caching return objects it is necessary to set cache_returns=False into the @task decorator, as Code 156 shows.

Code 156 Avoid return caching

from pycompss.api.task import task

@task(returns=1, cache_returns=False)
def mytask():
    return list(range(10))

Worker cache profiling

In order to use the cache profiler, you need to add the following flag:

--python_cache_profiler=true

Additionally, you also need to activate the cache with --python_worker_cache=true.

When using the cache profiler, the cache parameter in @task decorator is going to be ignored and all elements that can be stored in the cache will be stored.

The cache profiling file will be located in the workers’ folder within the log folder. In this file, you will find a summary showing for each function and parameter (including the return of the function), how many times has been the parameter been added to the cache (PUT), and how many times has been this parameter been deserialized from the cache (GET). Furthermore, there is also a list (USED IN), that shows in which parameter of which function the added parameter has been used.

Additional features

Concurrent serialization

It is possible to perform concurrent serialization of the objects in the master when using Python 3. To this end, just export the COMPSS_THREADED_SERIALIZATION environment variable with any value:

compss@bsc:~$ export COMPSS_THREADED_SERIALIZATION=1

Caution

Please, make sure that the COMPSS_THREADED_SERIALIZATION environment variable is not in the environment (env) to avoid the concurrent serialization of the objects in the master.

Tip

This feature can also be used within supercomputers in the same way.

Running C/C++ applications

To launch a COMPSs C/C++ application users have to compile the C/C++ application by means of the compss_build_app command. For further information please refer to 🧙 C/C++. Once complied, the --lang=c option must be provided to the runcompss command. If the main file is a C/C++ binary the runcompss command can also infer the application language without specifying the lang flag.

compss@bsc:~$ cd tutorial_apps/c/simple/
compss@bsc:~/tutorial_apps/c/simple$ runcompss --lang=c simple <initial_number>

compss@bsc:~/tutorial_apps/c/simple$ runcompss ~/tutorial_apps/c/simple/master/simple 1
[  INFO] Using default execution type: compss
[  INFO] Using default location for project file: /opt/COMPSs/Runtime/configuration/xml/projects/default_project.xml
[  INFO] Using default location for resources file: /opt/COMPSs/Runtime/configuration/xml/resources/default_resources.xml
[  INFO] Inferred C/C++ language

----------------- Executing simple --------------------------

JVM_OPTIONS_FILE: /tmp/tmp.ItT1tQfKgP
COMPSS_HOME: /opt/COMPSs
Args: 1

WARNING: COMPSs Properties file is null. Setting default values
[(650)    API]  -  Starting COMPSs Runtime v<version>
Initial counter value is 1
[   BINDING]  -  @compss_wait_on  -  Entry.filename: counter
[   BINDING]  -  @compss_wait_on  -  Runtime filename: d1v2_1497432831496.IT
Final counter value is 2
[(4222)    API]  -  Execution Finished

------------------------------------------------------------

Walltime

The runcompss command provides the --wall_clock_limit for the users to specify the maximum execution time for the application (in seconds). If the time is reached, the execution is stopped.

Tip

This flag enables to stop the execution of an application in a controlled way if the execution is taking more than expected.

Additional configurations

The COMPSs runtime has two configuration files: resources.xml and project.xml . These files contain information about the execution environment and are completely independent from the application.

For each execution users can load the default configuration files or specify their custom configurations by using, respectively, the --resources=<absolute_path_to_resources.xml> and the --project=<absolute_path_to_project.xml> in the runcompss command. The default files are located in the /opt/COMPSs/Runtime/configuration/xml/ path. Users can manually edit these files or can use the Eclipse IDE tool developed for COMPSs.

For further details please check the Configuration Files.

Results and logs

Results

When executing a COMPSs application we consider different type of results:

• Application Output: Output generated by the application.

• Application Files: Files used or generated by the application.

• Tasks Output: Output generated by the tasks invoked from the application.

Regarding the application output, COMPSs will preserve the application output but will add some pre and post output to indicate the COMPSs Runtime state. Figure 9 shows the standard output generated by the execution of the Simple Java application. The green box highlights the application stdout while the rest of the output is produced by COMPSs.

Figure 9 Output generated by the execution of the Simple Java application with COMPSs

Regarding the application files, COMPSs does not modify any of them and thus, the results obtained by executing the application with COMPSs are the same than the ones generated by the sequential execution of the application.

Regarding the tasks output, COMPSs introduces some modifications due to the fact that tasks can be executed in remote machines. After the execution, COMPSs stores the stdout and the stderr of each job (a task execution) inside the ``/home/$USER/.COMPSs/$APPNAME/$EXEC_NUMBER/jobs/`` directory of the main application node.

Figure 10 and Figure 11 show an example of the results obtained from the execution of the Hello Java application. While Figure 10 provides the output of the sequential execution of the application (without COMPSs), Figure 11 provides the output of the equivalent COMPSs execution. Please note that the sequential execution produces the Hello World! (from a task) message in the stdout while the COMPSs execution stores the message inside the job1_NEW.out file.

Figure 10 Sequential execution of the Hello java application

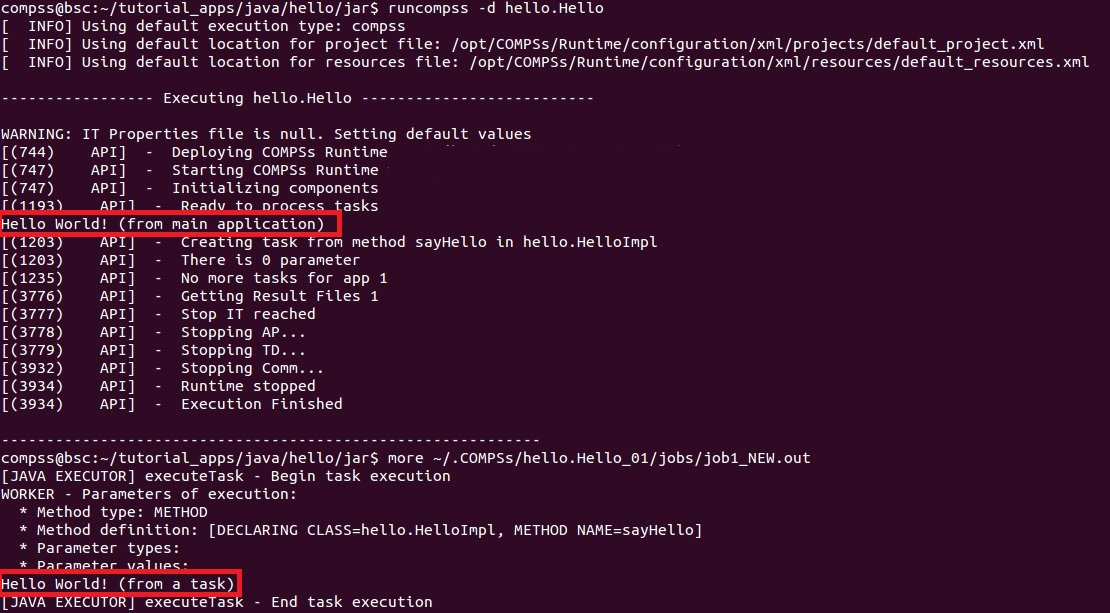

Figure 11 COMPSs execution of the Hello java application

Logs

COMPSs includes five log levels for running applications but users can modify them or add more levels by editing the logger files under the /opt/COMPSs/Runtime/configuration /log/ folder. Any of these log levels can be selected by adding the --log_level=<off | info | api | debug | trace> flag to the runcompss command. The default value is off.

The logs generated by the NUM_EXEC execution of the application APP by the user USER are stored under /home/$USER/.COMPSs/$APP/$EXEC_NUMBER/ folder (from this point on: base log folder). The EXEC_NUMBER execution number is automatically used by COMPSs to prevent mixing the logs of data of different executions.

When running COMPSs with log level off only the errors are reported. This means that the base log folder will contain two empty files (runtime.log and resources.log) and one empty folder (jobs). If somehow the application has failed, the runtime.log and/or the resources.log will not be empty and a new file per failed job will appear inside the jobs folder to store the stdout and the stderr. Figure 12 shows the logs generated by the execution of the Simple java application (without errors) in off mode.

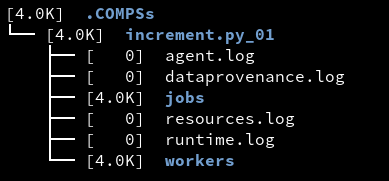

Figure 12 Structure of the logs folder for the Simple java application in off mode

When running COMPSs with log level info the base log folder will contain two files (runtime.log and resources.log) and one folder (jobs). The runtime.log file contains the execution information retrieved from the master resource, including the file transfers and the job submission details. The resources.log file contains information about the available resources such as the number of processors of each resource (slots), the information about running or pending tasks in the resource queue and the created and destroyed resources. The jobs folder will be empty unless there has been a failed job. In this case it will store, for each failed job, one file for the stdout and another for the stderr. As an example, Figure 13 shows the logs generated by the same execution than the previous case but with info mode.

Figure 13 Structure of the logs folder for the Simple java application in info mode

The runtime.log and resources.log are quite large files, thus they should be only checked by advanced users. For an easier interpretation of these files the COMPSs Framework includes a monitor tool. For further information about the COMPSs Monitor please check 🖥️ Monitor.

Figure 14 and Figure 15 provide the content of these two files generated by the execution of the Simple java application.

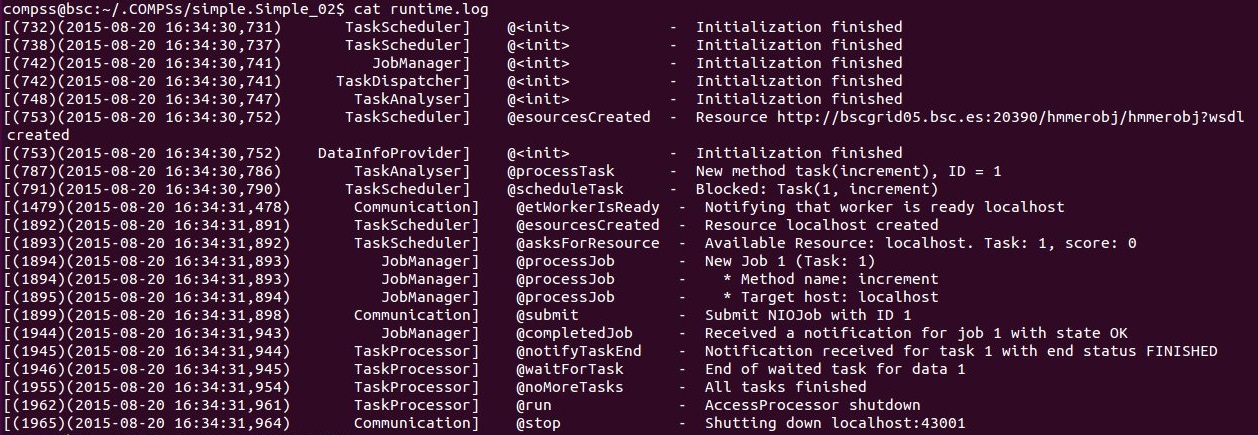

Figure 14 runtime.log generated by the execution of the Simple java application

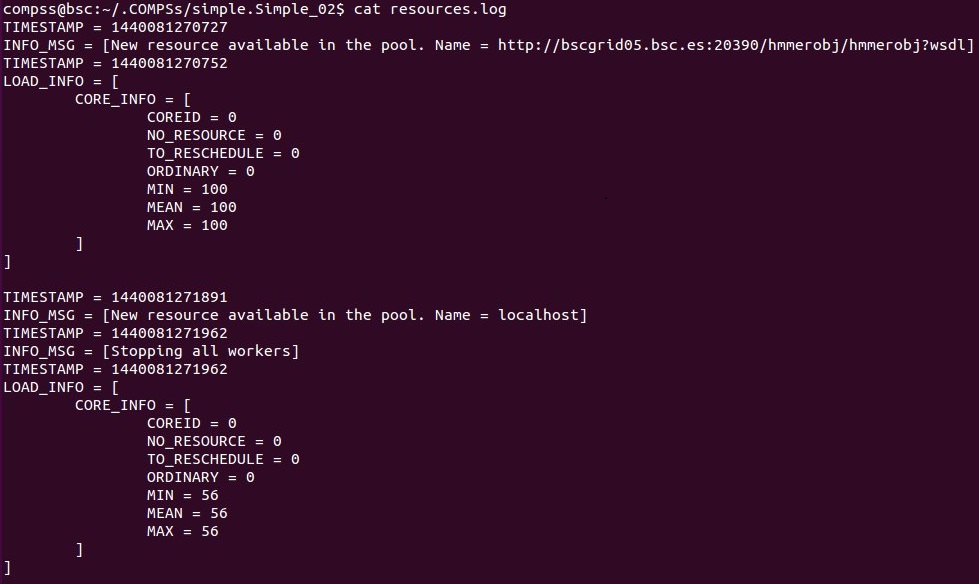

Figure 15 resources.log generated by the execution of the Simple java application

Running COMPSs with log level API generates the same files as the info log level but shows the API information through stdout. As an example, Figure 16 shows the logs generated by the same execution than the previous case but with API mode.

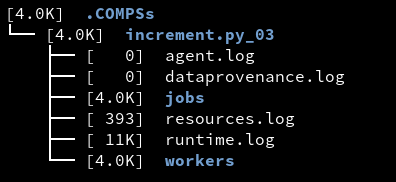

Figure 16 Structure of the logs folder for the Simple java application in API mode

Running COMPSs with log level debug generates the same files as the API log level but with more detailed information. Additionally, the jobs folder contains two files per submitted job; one for the stdout and another for the stderr. In the other hand, the COMPSs Runtime state is printed out on the stdout. Figure 17 shows the logs generated by the same execution than the previous cases but with debug mode.

The runtime.log and the resources.log files generated in this mode can be extremely large. Consequently, the users should take care of their quota and manually erase these files if needed.

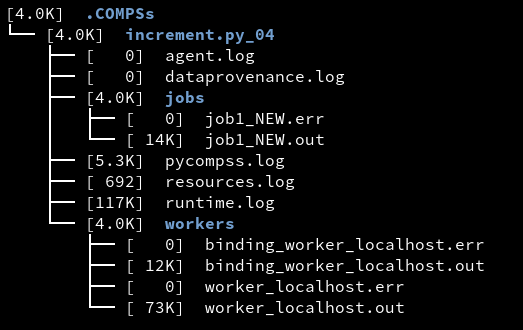

Figure 17 Structure of the logs folder for the Simple java application in debug mode

When running Python applications a pycompss.log file is written inside the base log folder containing debug information about the specific calls to PyCOMPSs.

Furthermore, when running runcompss with additional flags (such as monitoring or tracing) additional folders will appear inside the base log folder. The meaning of the files inside these folders is explained in 🛠️ Ecosystem.

Finally, running COMPSs with log level trace extends the debug information with much more detailed information for debugging specific issues. This log level generates larger files that the debug log level. Consequently, users must take care of their quota. As an example, Figure 18 shows the logs generated by the same execution than the previous case but with trace mode.

Figure 18 Structure of the logs folder for the Simple java application in trace mode
