Linear Regression

Linear regression models the relationship between a dependent variable y and a set of independent variables $x_1, x_2, \dots, x_p$ . For a given observation $i$, the model is expressed as:

$y_i = \beta_0 + \beta_1 x_{i1} + \beta_2 x_{i2} + \cdots + \beta_p x_{ip} + \varepsilon_i,$

where $\beta_0$ is the intercept, $\beta_1, \dots, \beta_p$ are the regression coefficients, and $\varepsilon_i$ is the error term.

In vector form, this becomes:

$y_i = \mathbf{x}_i^\top \boldsymbol{\beta} + \boldsymbol\varepsilon_i,$

where $\mathbf{x}_i = [1, x_{i1}, x_{i2}, \dots, x_{ip}]^\top$ includes the intercept term, and $\boldsymbol{\beta} = [\beta_0, \beta_1, \dots, \beta_p]^\top$ is the parameter vector. To estimate $\boldsymbol{\beta}$ , the method of least squares minimizes the residual sum of squares:

$\min_{\boldsymbol{\beta}} \sum_{i=1}^n (y_i - \mathbf{x}_i^\top \boldsymbol{\beta})^2.$

Let $\mathbf{X} \in \mathbb{R}^{n \times (p+1)}$ be the design matrix and $\mathbf{y} \in \mathbb{R}^n$ the response vector. The closed-form least squares solution is:

$\hat{\boldsymbol{\beta}} = (\mathbf{X}^\top \mathbf{X})^{-1} \mathbf{X}^\top \mathbf{y}.$

Next we provide the main code of this application.

Code 178 task_linear_regression.R

# Copyright (c) 2025- King Abdullah University of Science and Technology,
# All rights reserved.
# RCOMPSs is a software package, provided by King Abdullah University of Science and Technology (KAUST) - STSDS Group.

# @file tasks_linear_regression.R
# @brief This file contains the tasks of the linear regression with predictions application
# @version 1.0
# @author Xiran Zhang
# @date 2025-04-28

DEBUG <- list(
            LR_fill_fragment = FALSE,
            partial_ztz = FALSE,
            partial_zty = FALSE,
            compute_model_parameters = FALSE,
            merge = FALSE
)

LR_fill_fragment <- function(params_LR_fill_fragment, true_coeff){
    num_frag <- params_LR_fill_fragment$dim[1]
    dimension_x <- params_LR_fill_fragment$dim[2]
    dimension_y <- params_LR_fill_fragment$dim[3]
    if(DEBUG$LR_fill_fragment){
        cat("Doing LR_fill_fragment ...\n")
        cat(paste0("num_frag = ", num_frag, "; dimension_x = ", dimension_x, "; dimension_y = ", dimension_y, "\n"))
        cat("class(true_coeff):", class(true_coeff), "\n")
        cat("typeof(true_coeff):", typeof(true_coeff), "\n")
        cat("Printing true_coeff\n"); print(true_coeff)
    }
    # Generate X
    x_frag <- matrix(runif(num_frag * dimension_x), nrow = num_frag, ncol = dimension_x)
    # Create the response variable with some noise
    y_frag <- cbind(1, x_frag) %*% true_coeff
    M <- matrix(rnorm(num_frag * dimension_y), nrow = num_frag, ncol = dimension_y)
    y_frag <- y_frag + M

    X_Y <- cbind(x_frag, y_frag)

    return(X_Y)
}

LR_genpred <- function(params_LR_genpred){
    num_frag <- params_LR_genpred$n
    dimension <- params_LR_genpred$d
    # Generate random data for prediction
    x_pred <- matrix(runif(num_frag * dimension), nrow = num_frag, ncol = dimension)
    return(x_pred)
}

partial_ztz <- function(x_y, dx) {
    if(DEBUG$partial_ztz){
        cat("Executing task: partial_ztz\n")
        cat("In partial_ztz, x_y: type is", typeof(x_y), "class is", class(x_y), "\n")
    }
    x <- x_y[,1:dx]
    if(DEBUG$partial_ztz){
        cat("In partial_ztz, x:\n")
        print(x)
    }
    x <- cbind(1, x)
    if(DEBUG$partial_ztz){
        cat("Executing task: partial_ztz\n")
    }
    ztz <- t(x) %*% x
    if(DEBUG$partial_ztz){
        cat("Executing task: partial_ztz ---- Success!\n")
    }
    return(ztz)
}

partial_zty <- function(x_y, dx) {
    if(DEBUG$partial_zty){
        cat("Executing task: partial_zty\n")
    }
    x <- x_y[,1:dx]
    y <- x_y[,(dx+1):ncol(x_y)]
    x <- cbind(1, x)
    zty <- t(x) %*% y
    if(DEBUG$partial_zty){
        cat("Executing task: partial_zty ---- Success!\n")
    }
    return(zty)
}

compute_model_parameters <- function(ztz, zty) {
    params <- solve(ztz, zty)
    return(params)
}

compute_prediction <- function(x, parameters){
    x <- cbind(1, x)
    return(x %*% parameters)
}

row_combine <- function(...){
    do.call(rbind, list(...))
}

merge <- function(...){
    input <- list(...)
    input_len <- length(input)
    if(DEBUG$merge) {
        cat("Doing merge\n")
        for(i in 1:input_len){
            cat("Input", i, "\n")
            print(input[[i]])
        }
        for(i in 1:input_len){
            cat("Input dimension", i, dim(input[[i]]), "\n")
        }
    }
    if(input_len == 1){
        return(input[[1]])
    }else if(input_len >= 2){
        accum <- input[[1]]
        for(i in 2:input_len){
            accum <- accum + input[[i]]
        }
        if(DEBUG$merge) {
            cat("accum\n")
            print(accum)
        }
        return(accum)
    }else{
        stop("Wrong input in `merge`!\n")
    }
}

Code 179 functions_linear_regression.R

# Copyright (c) 2025- King Abdullah University of Science and Technology,
# All rights reserved.
# RCOMPSs is a software package, provided by King Abdullah University of Science and Technology (KAUST) - STSDS Group.

# @file functions_linear_regression.R
# @brief This file contains the functions for the linear regression with predictions application
# @version 1.0
# @author Xiran Zhang
# @date 2025-04-28

fit_linear_regression <- function(x_y, dx, dy, arity = 2, use_RCOMPSs = FALSE) {

    nfrag <- length(x_y)
    ztz <- vector("list", nfrag)
    zty <- vector("list", nfrag)
    if(use_RCOMPSs){
        # Compute ztz and zty
        for(i in 1:nfrag) {
            ztz[[i]] <- task.partial_ztz(x_y[[i]], dx)
            zty[[i]] <- task.partial_zty(x_y[[i]], dx)
        }
        # Merge ztz
        while(length(ztz) > arity){
            ztz_subset <- ztz[1:arity]
            ztz <- ztz[(arity + 1):length(ztz)]
            ztz[[length(ztz) + 1]] <- do.call(task.merge, ztz_subset)
        }
        ztz <- do.call(task.merge, ztz)
        # Merge zty
        while(length(zty) > arity){
            zty_subset <- zty[1:arity]
            zty <- zty[(arity + 1):length(zty)]
            zty[[length(zty) + 1]] <- do.call(task.merge, zty_subset)
        }
        zty <- do.call(task.merge, zty)
        # Compute ztz^(-1) %*% zty
        parameters <- task.compute_model_parameters(ztz, zty)
    }else{
        # Compute ztz and zty
        for(i in 1:nfrag) {
            ztz[[i]] <- partial_ztz(x_y[[i]], dx)
            zty[[i]] <- partial_zty(x_y[[i]], dx)
        }
        # Merge ztz
        while(length(ztz) > arity){
            ztz_subset <- ztz[1:arity]
            ztz <- ztz[(arity + 1):length(ztz)]
            ztz[[length(ztz) + 1]] <- do.call(merge, ztz_subset)
        }
        ztz <- do.call(merge, ztz)
        # Merge zty
        while(length(zty) > arity){
            zty_subset <- zty[1:arity]
            zty <- zty[(arity + 1):length(zty)]
            zty[[length(zty) + 1]] <- do.call(merge, zty_subset)
        }
        zty <- do.call(merge, zty)
        # Compute ztz^(-1) %*% zty
        parameters <- compute_model_parameters(ztz, zty)
    }
    return(parameters)
}

predict_linear_regression <- function(x, parameters, arity, use_RCOMPSs) {
    nf <- length(x)
    pred <- vector("list", nf)
    if(use_RCOMPSs){
        for(i in 1:nf){
            pred[[i]] <- task.compute_prediction(x[[i]], parameters)
        }
    }else{
        for(i in 1:nf){
            pred[[i]] <- compute_prediction(x[[i]], parameters)
        }
    }
    return(pred)
}

parse_arguments <- function(Minimize) {

    if(!Minimize){
        cat("Starting parse_arguments\n")
    }

    args <- commandArgs(trailingOnly = TRUE)

    # Define default values
    # Note that if `num_fragments` is not a factor of `numpoints`, the last fragment may give NA due to lack of points.
    seed <- 1
    num_fit <- 9000
    num_pred <- 1000
    dimensions_x <- 2
    dimensions_y <- 2
    num_fragments_fit <- 10
    num_fragments_pred <- 5
    arity <- 2

    # Execution using RCOMPSs
    use_RCOMPSs <- FALSE

    # asking for help
    is.asking_for_help <- FALSE

    # Compare accuracy?
    compare_accuracy <- FALSE

    # Parse arguments
    if(length(args) >= 1){
        for (i in 1:length(args)) {
            if (args[i] == "-s") {
                seed <- as.integer(args[i + 1])
            } else if (args[i] == "--seed") {
                seed <- as.integer(args[i + 1])
            } else if (args[i] == "-n") {
                num_fit <- as.integer(args[i + 1])
            } else if (args[i] == "--num_fit") {
                num_fit <- as.integer(args[i + 1])
            } else if (args[i] == "-N") {
                num_pred <- as.integer(args[i + 1])
            } else if (args[i] == "--num_pred") {
                num_pred <- as.integer(args[i + 1])
            } else if (args[i] == "-d") {
                dimensions_x <- as.integer(args[i + 1])
            } else if (args[i] == "--dimensions_x") {
                dimensions_x <- as.integer(args[i + 1])
            } else if (args[i] == "-D") {
                dimensions_y <- as.integer(args[i + 1])
            } else if (args[i] == "--dimensions_y") {
                dimensions_y <- as.integer(args[i + 1])
            } else if (args[i] == "-f") {
                num_fragments_fit <- as.integer(args[i + 1])
            } else if (args[i] == "--fragments_fit") {
                num_fragments_fit <- as.integer(args[i + 1])
            } else if (args[i] == "-F") {
                num_fragments_pred <- as.integer(args[i + 1])
            } else if (args[i] == "--fragments_pred") {
                num_fragments_pred <- as.integer(args[i + 1])
            } else if (args[i] == "-a") {
                arity <- as.integer(args[i + 1])
            } else if (args[i] == "--arity") {
                arity <- as.integer(args[i + 1])
            } else if (args[i] == "-C") {
                use_RCOMPSs <- TRUE
            } else if (args[i] == "--RCOMPSs") {
                use_RCOMPSs <- TRUE
            } else if (args[i] == "--compare_accuracy") {
                compare_accuracy <- TRUE
            } else if (args[i] == "-h") {
                is.asking_for_help <- TRUE
            } else if (args[i] == "--help") {
                is.asking_for_help <- TRUE
            }
        }
    }

    if(is.asking_for_help){
        cat("Usage: Rscript linear_regression.R [options]\n")
        cat("Options:\n")
        cat("  -s, --seed <seed>                          Seed for random number generator\n")
        cat("  -n, --num_fit <num_fit>                    Number of fitting points\n")
        cat("  -N, --num_pred <num_pred>                  Number of predicting points\n")
        cat("  -d, --dimensions_x <dimensions_x>          Number of X dimensions\n")
        cat("  -D, --dimensions_y <dimensions_y>          Number of Y dimensions\n")
        cat("  -f, --fragments_fit <num_fragments_fit>    Number of fragments of the fitting data\n")
        cat("  -F, --fragments_pred <num_fragments_pred>  Number of fragments of the prediction data\n")
        cat("  -r, --arity <arity>                        Integer: Arity of the merge\n")
        cat("  -C, --RCOMPSs <use_RCOMPSs>                Boolean: Use RCOMPSs parallelization?\n")
        cat("  -M, --Minimize <Minimize>                  Boolean: Minimize printout?\n")
        cat("  --compare_accuracy <compare_accuracy>      Boolean: Compare accuracy?\n")
        cat("  -h, --help                                 Show this help message\n")
        q(status = 0)
    }

    return(list(
                seed = seed,
                num_fit = num_fit,
                num_pred = num_pred,
                dimensions_x = dimensions_x,
                dimensions_y = dimensions_y,
                num_fragments_fit = num_fragments_fit,
                num_fragments_pred = num_fragments_pred,
                arity = arity,
                use_RCOMPSs = use_RCOMPSs,
                compare_accuracy = compare_accuracy
                ))
}

print_parameters <- function(params) {
    cat("Parameters:\n")
    cat("  Seed:", params$seed, "\n")
    cat("  Number of fitting points:", params$num_fit, "\n")
    cat("  Number of predicting points:", params$num_pred, "\n")
    cat("  X dimensions:", params$dimensions_x, "\n")
    cat("  Y dimensions:", params$dimensions_y, "\n")
    cat("  Number of fragments of the fitting data:", params$num_fragments_fit, "\n")
    cat("  Number of fragments of the predicting data:", params$num_fragments_pred, "\n")
    cat("  Arity:", params$arity, "\n")
    cat("  use_RCOMPSs:", params$use_RCOMPSs, "\n")
    cat("  Compare accuracy?", params$compare_accuracy, "\n")
}

Code 180 linear_regression.R

# Copyright (c) 2025- King Abdullah University of Science and Technology,
# All rights reserved.
# RCOMPSs is a software package, provided by King Abdullah University of Science and Technology (KAUST) - STSDS Group.

# @file linear_regression.R
# @brief This file is the main file of the linear regression with predictions application
# @version 1.0
# @author Xiran Zhang
# @date 2025-04-28

# Processing parameters
args <- commandArgs(trailingOnly = TRUE)

Minimize <- FALSE
# Parse arguments
if(length(args) >= 1){
    for (i in 1:length(args)) {
        if (args[i] == "-M") {
            Minimize <- TRUE
        } else if (args[i] == "--Minimize") {
            Minimize <- TRUE
        }
    }
}

# Source necessary functions
if(!Minimize){
    cat("Sourcing necessary functions ... ")
}
source("tasks_linear_regression.R")
source("functions_linear_regression.R")
if(!Minimize){
    cat("Done.\n")
}

if(!Minimize){
    cat("Getting parameters ... ")
}
params <- parse_arguments(Minimize)
print_parameters(params)
attach(params)
if(!Minimize){
    cat("Done.\n")
}
# Finished processing parameters

if (use_RCOMPSs){
    require(RCOMPSs)

    compss_start()
    task.LR_fill_fragment <- task(LR_fill_fragment, "tasks_linear_regression.R", info_only = FALSE, return_value = TRUE, DEBUG = FALSE)
    task.LR_genpred <- task(LR_genpred, "tasks_linear_regression.R", info_only = FALSE, return_value = TRUE, DEBUG = FALSE)
    task.partial_ztz <- task(partial_ztz, "tasks_linear_regression.R", info_only = FALSE, return_value = TRUE, DEBUG = FALSE)
    task.partial_zty <- task(partial_zty, "tasks_linear_regression.R", info_only = FALSE, return_value = TRUE, DEBUG = FALSE)
    task.compute_model_parameters <- task(compute_model_parameters, "tasks_linear_regression.R", info_only = FALSE, return_value = TRUE, DEBUG = FALSE)
    task.compute_prediction <- task(compute_prediction, "tasks_linear_regression.R", info_only = FALSE, return_value = TRUE, DEBUG = FALSE)
    task.row_combine <- task(row_combine, "tasks_linear_regression.R", info_only = FALSE, return_value = TRUE, DEBUG = FALSE)
    task.merge <- task(merge, "tasks_linear_regression.R", info_only = FALSE, return_value = TRUE, DEBUG = FALSE)
}

# Example usage:
set.seed(seed)
n <- num_fit
N <- num_pred
d <- dimensions_x
D <- dimensions_y

# Generate random regression coefficients
true_coeff <- matrix(round(runif((d+1)*D, -10, 10)), nrow = d + 1, ncol = D)
# If all the covariate are corresponding to 0, we need to do it again
for(j in 1:D){
    while(all(true_coeff[-1,j] == 0)){
        true_coeff[-1,j] <- round(runif(d, -10, 10))
    }
}

for(replicate in 1:1){
    cat("Doing replicate", replicate, "...\n")

    if(replicate > 1) compare_accuracy <- FALSE

    start_time <- proc.time()

    # Generate random data
    X_Y <- vector("list", num_fragments_fit)
    PRED <- vector("list", num_fragments_pred)
    if(use_RCOMPSs){
        params <- list(dim = c(n / num_fragments_fit, d, D))
        for(i in 1:num_fragments_fit){
            X_Y[[i]] <- task.LR_fill_fragment(params, true_coeff)
        }
        params <- list(n = N / num_fragments_pred, d = d)
        for(j in 1:num_fragments_pred){
            PRED[[j]] <- task.LR_genpred(params)
        }
    }else{
        params <- list(dim = c(n / num_fragments_fit, d, D))
        for(i in 1:num_fragments_fit){
            X_Y[[i]] <- LR_fill_fragment(params, true_coeff)
        }
        params <- list(n = N / num_fragments_pred, d = d)
        for(j in 1:num_fragments_pred){
            PRED[[j]] <- LR_genpred(params)
        }
    }

    # Fit the model
    model <- fit_linear_regression(X_Y, d, D, arity = arity, use_RCOMPSs = use_RCOMPSs)

    # Predict using the model
    predictions <- predict_linear_regression(PRED, model, arity, use_RCOMPSs)

    if(use_RCOMPSs){
        if(compare_accuracy){
            predictions <- compss_wait_on(predictions)
        }else{
            compss_barrier()
        }
    }
    linear_regression_time <- proc.time()

    LR_time <- round(linear_regression_time[3] - start_time[3], 3)

    # To compare accuracy
    if(compare_accuracy){
        if(use_RCOMPSs){
            X_Y <- do.call(task.row_combine, X_Y)
            X_Y <- compss_wait_on(X_Y)
            PRED <- do.call(task.row_combine, PRED)
            PRED <- compss_wait_on(PRED)
            predictions <- do.call(task.row_combine, predictions)
            predictions <- compss_wait_on(predictions)
            model <- compss_wait_on(model)
        }else{
            X_Y <- do.call(rbind, X_Y)
            PRED <- do.call(rbind, PRED)
            predictions <- do.call(rbind, predictions)
        }
        X <- X_Y[,1:dimensions_x]
        Y <- X_Y[,(dimensions_x+1):(dimensions_x+dimensions_y)]
        start_lm <- proc.time()
        model_base <- lm(Y ~ X)
        coeff <- coefficients(model_base)
        predictions_base <- cbind(1, PRED) %*% coeff
        end_lm <- proc.time()
        lm_time <- round(end_lm[3] - start_lm[3], 3)
        # Results:
        cat("\nTrue coefficients:\n"); print(round(true_coeff, 2))
        cat("\nEstimated coefficients:\n"); print(round(model, 2))
        cat("\n`lm` coefficients:\n"); print(round(coeff, 2))
        cat("\nSquared error of the difference between `predictions` and `predictions_base` is:", sum((predictions - predictions_base)^2), "\n")

        rm(X, Y, PRED, model_base, coeff, predictions_base)
    }

    cat("-----------------------------------------\n")
    cat("-------------- RESULTS ------------------\n")
    cat("-----------------------------------------\n")
    cat("Linear regression time:", LR_time, "seconds\n")
    if(compare_accuracy) cat("Base R lm time:", lm_time, "seconds\n")
    cat("-----------------------------------------\n")
    if(Minimize){
        cat("LR_RES,seed,num_fit,num_pred,dimensions_x,dimensions_y,num_fragments_fit,num_fragments_pred,arity,use_RCOMPSs,compare_accuracy,Minimize,LR_time,run\n")
        cat(paste0("LR_res,", seed, ",", num_fit, ",", num_pred, ",", dimensions_x, ",", dimensions_y, ",", num_fragments_fit, ",", num_fragments_pred, ",", arity, ",", use_RCOMPSs, ",", compare_accuracy, ",", Minimize, ",", LR_time, ",", replicate, "\n"))
    }
    rm(X_Y, model, predictions)
}

if(use_RCOMPSs) compss_stop()

Next we run the Linear Regression application with the -g option to be able to generate the final graph at the end of the execution.

compss@bsc:~/tutorial_apps/r/linear_regression$ runcompss --lang=r -g linear_regression.R --seed 3 --num_fit 1000 --num_pred 10 --dimensions_x 10 --dimensions_y 2 --fragments_fit 10 --fragments_pred 10 --arity 2 --RCOMPSs --Minimize
[ INFO ] Using default location for project file: /opt/COMPSs//Runtime/configuration/xml/projects/default_project.xml
[ INFO ] Using default location for resources file: /opt/COMPSs//Runtime/configuration/xml/resources/default_resources.xml
[ INFO ] Using default execution type: compss

----------------- Executing linear_regression.R --------------------------

Parameters:
Seed: 3
Number of fitting points: 1000
Number of predicting points: 100
X dimensions: 10
Y dimensions: 2
Number of fragments of the fitting data: 10
Number of fragments of the predicting data: 10
Arity: 2
use_RCOMPSs: TRUE
Compare accuracy? FALSE
[(823)    API]  -  Starting COMPSs Runtime v3.4 (build 20250515-0858.rb6a767530b0120119c45956d05fa3a1578cad401)
Doing replicate 1 ...
-----------------------------------------
-------------- RESULTS ------------------
-----------------------------------------
Linear regression time: 5,798 seconds
-----------------------------------------
LR_RES,seed,num_fit,num_pred,dimensions_x,dimensions_y,num_fragments_fit,num_fragments_pred,arity,use_RCOMPSs,compare_accuracy,Minimize,LR_time,run
LR_res,3,1000,100,10,2,10,10,2,TRUE,FALSE,TRUE,5,798,1
[(9331)    API]  -  Execution Finished

------------------------------------------------------------

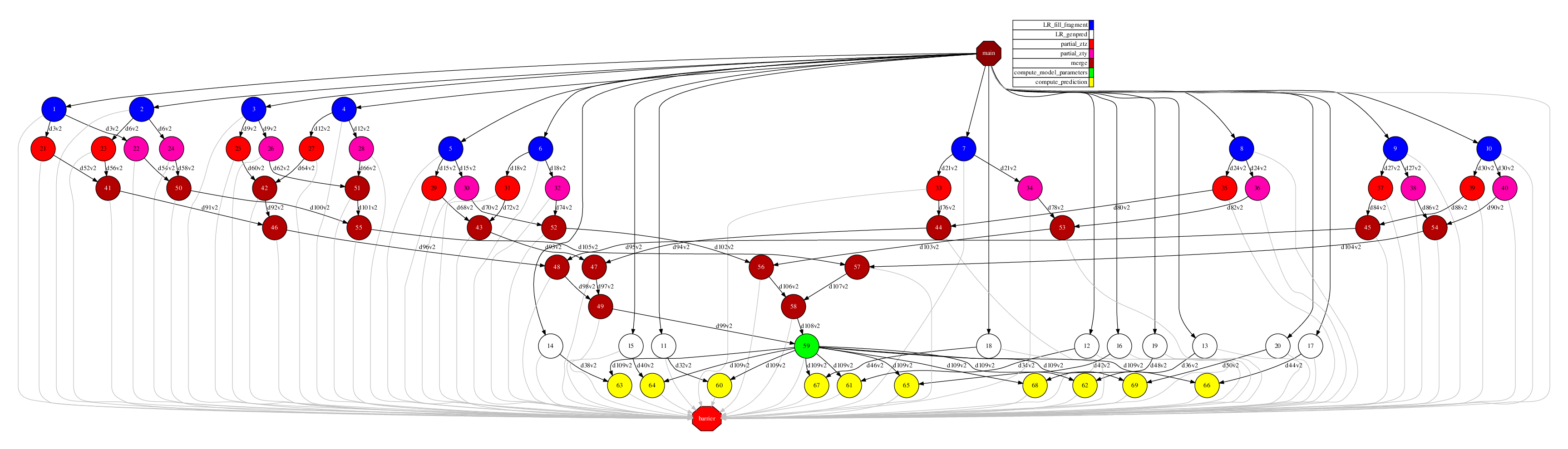

By running the compss_gengraph command users can obtain the task graph of the above execution. Next we provide the set of commands to obtain the graph show in Figure 88.

compss@bsc:~$ cd ~/.COMPSs/linear_regression.R_01/monitor/
compss@bsc:~/.COMPSs/linear_regression.R_01/monitor$ compss_gengraph complete_graph.dot
compss@bsc:~/.COMPSs/linear_regression.R_01/monitor$ evince complete_graph.pdf
