Using WorkflowHub

Publish and cite your results with WorkflowHub

Once the provenance metadata for your COMPSs application has been generated, you have the possibility of publishing your results (i.e. both the workflow and the workflow run) in WorkflowHub, the FAIR workflow registry, where a DOI can be generated and used as a persistent identifier to cite your experiment in a scientific paper. Detailed documentation on how to use the WorkflowHub web site can be found in their Documentation section.

The steps to achieve the publication of a COMPSs execution are:

  • Pack the resulting crate sub-directory (i.e. COMPSs_RO-Crate_[uuid]/) in a zip file. The ro-crate-metadata.json file must be at the root level of this zip file. Example:

$ cd COMPSs_RO-Crate_891540ad-18ca-4e19-aeb4-66a237193d07/
$ zip -r ~/Desktop/crate.zip *

  • Login or create an account in the WorfklowHub registry. You can use your GitHub credentials to easily log in.

  • Before being able to contribute workflows to the registry, you need to join a WorkflowHub Team. You can either create your own team, or join an existing one, as shown in the following Figure. For testing purposes, you can join the COMPSs Tutorials team.

Join or Create

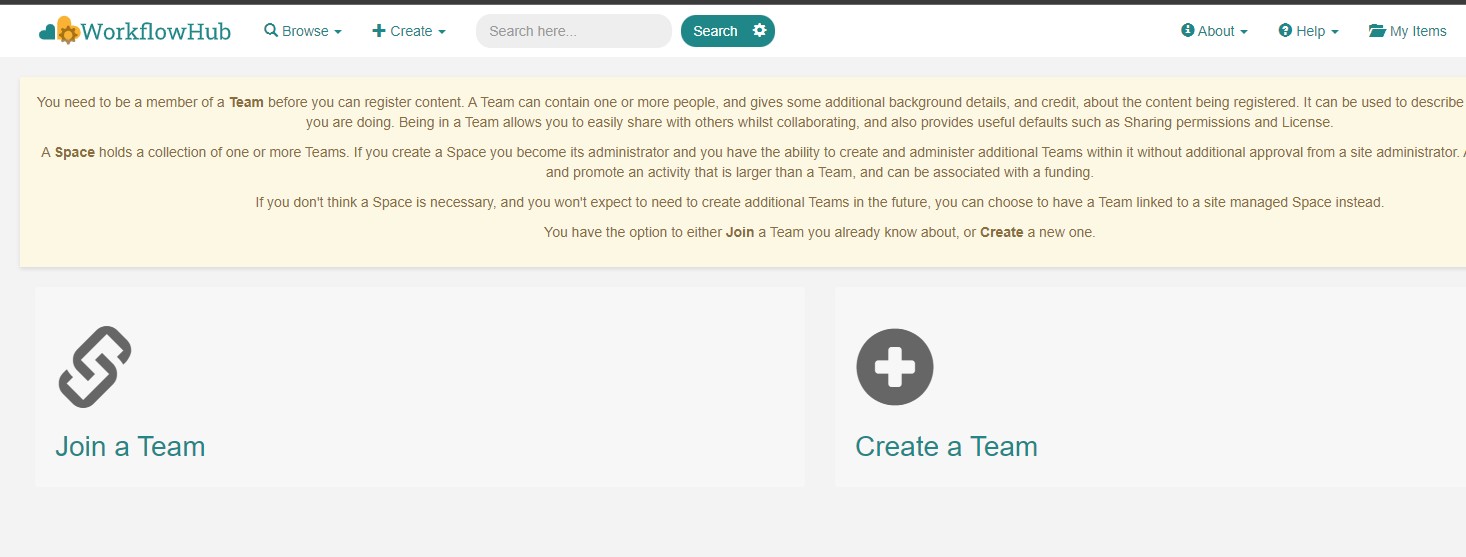

Figure 50 Join or Create a Team at WorkflowHub

  • Once you belong to a Team, you will be able to use the big Contribute button at the WorkflowHub home page.

    • Alternatively, the menu Create at the top of the web page can be used, selecting Workflow.

  • Select the third tab Upload/Import Workflow RO-Crate tab, Local file, and browse your computer to select the zip file prepared previously. Click Register.

  • Review that the information automatically obtained from the workflow provenance is correct.

    • Select the Teams that this workflow will belong to (mandatory).

    • Select the visibility and teams’ permissions for your workflow in the Sharing section (for both general public, and for the WorkflowHub Teams where this workflow will be added).

    • Click Register again.

Warning

WorkflowHub Teams may have default sharing policies defined when they are created. Thus, when linking your workflow to a team, you can select if you want to apply the Team’s default policy or not.

Tip

The crate (i.e. folder COMPSs_RO-Crate_[uuid]/) can also be uploaded to GitHub, and then imported from WorkflowHub using the second tab option Import Git Repository. See an example here: https://workflowhub.eu/workflows/1076

After these steps, the main summary page of your workflow will be shown, where three main tabs can be selected (see https://doi.org/10.48546/workflowhub.workflow.484.1 to check out an example directly at WorkflowHub):

  • Overview: where the workflow type, workflow description, and workflow diagram are shown.

Overview

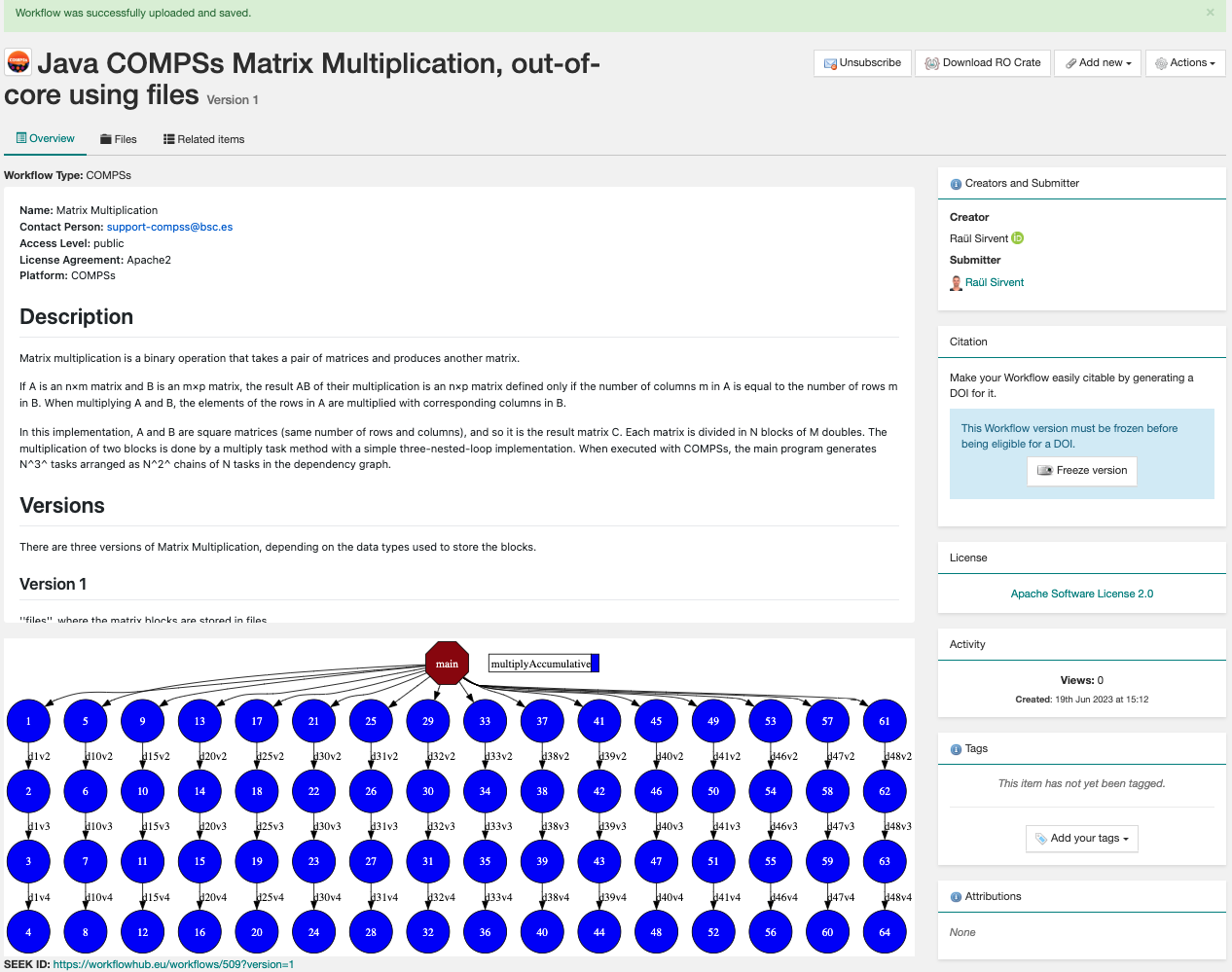

Figure 51 Overview tab information

  • Files: where you can browse the uploaded content of the crate (see Resulting crate for details on the crate structure).

Files

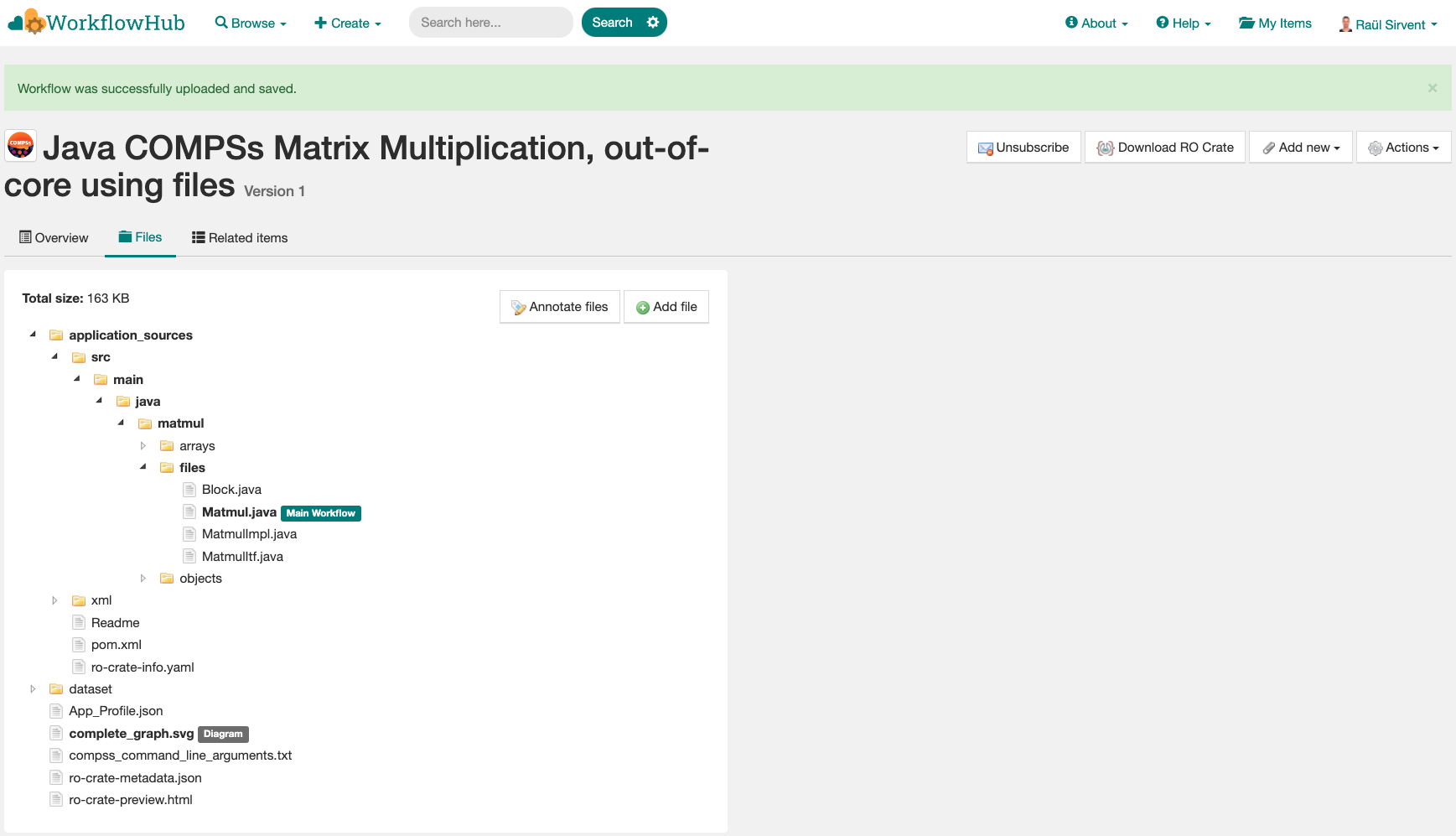

Figure 52 Files tab information

  • Related items: where you can find any other entities related to this workflow (i.e. People, Spaces, Teams, Publications, Presentations, Collections, …)

At this point, before freezing and generating a DOI for the workflow, you may consider if remote datasets need to be added to the workflow. See Section Adding large dataset as remote in WorkflowHub for a detailed guide on how to do that.

If everything is correct, the next step is to generate a DOI (i.e. a persistent identifier) for your workflow. The necessary steps to achieve this are:

Warning

Before generating a DOI for your workflow results, make sure everything uploaded is correct and in its final version, since a DOI is ment to be a permanent reference, and, once generated, erasing a DOI is not easy.

  • Freeze your workflow version, either from the Overview tab, Citation box, Freeze version button, or from the Actions menu, Freeze version.

Freeze

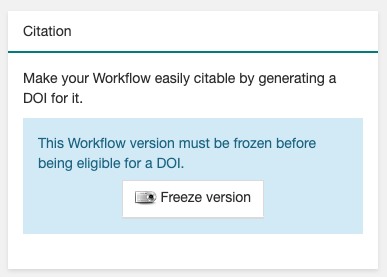

Figure 53 Freeze button in the Citation box

  • Once frozen, a new Generate a DOI button will appear in the Citation box. This can be also found in the Actions menu, Generate a DOI. Finish the generation by clicking Mint DOI.

DOI

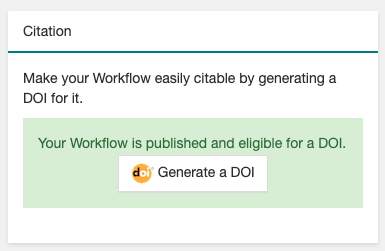

Figure 54 Generate a DOI button in the Citation box

  • The final generated DOI for the workflow results can be found in the Citation box. The format of the citation can be changed from the dropdown menu inside the box, which has a large number of styles available. One of the most commonly used is the BibTeX generic citation style.

Citation

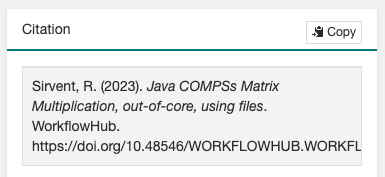

Figure 55 Resulting text in the Citation box, to be used in bibliography

Warning

If no Authors are provided in the YAML configuration file, it won’t be possible to generate a DOI. See Section YAML configuration file

You can see some examples on previous published workflows:

Tip

When writing the description term of your YAML configuration file (see Section YAML configuration file) you can use Markdown language to get a fancier description in WorkflowHub. You can find a Markdown language guide in this site, and an example on how to write it at the YAML configuration files of the previously provided examples (i.e. in their included ro-crate-info.yaml files).

Creating a new version of a Workflow

It is obvious that, as the development of a specific workflow progresses, new versions of what conceptually is the same workflow will be created. In addition, even if the code remains unchanged, new execution results of the application may also want to be shared for including them in papers as DOI references (i.e. same algorithm, using different inputs, generating different outputs). Therefore, a recommended practice is to use the New version feature of the WorkflowHub portal, so the same workflow page will contain different versions / executions of the same COMPSs application. This is achieved using:

  • Step 1: Update the code of your COMPSs application, and generate a new run with previous or new results, activating workflow provenance generation.

  • Step 2: Open the previously existing workflow at WorkflowHub.

  • Step 3: Select Actions -> New version.

    • If your workflow was imported from RO-Crate, select Upload/Import Workflow RO-Crate to upload workflow provenance.

    • If you imported the workflow from GitHub, once you have committed your changes / results, select Import Git Repository. This action will import the latest commit in the repository to WorkflowHub.

Once these steps are finished, the Overview tab of the workflow will show a new entry at the bottom of the page, in the Version History section of the page. An example can be seen here: https://workflowhub.eu/workflows/1076

Tip

Notice that DOIs can be generated for each of the different versions of the uploaded workflow, so all of them can be properly shared.

Adding large dataset as remote in WorkflowHub

As mentioned earlier, whenever a workflow uses or produces a very large dataset, it should not include the data as persistent (i.e. directly included in the crate), but reference it as a remote dataset. A rule of thumb is that, if the workflow includes less than ~100 MB of files, it can be included as a persistent dataset. However, for cases where data assets are hundreds of MBs or even several GBs, the remote dataset option must be used. Some external repositories commonly used to share large datasets are:

Warning

The addition of remote datasets must be done before freezing the workflow version and generating the DOI for citation.

  • Step 1: execute your application adding manually as inputs or outputs the remote dataset reference (i.e. an https URL reference such as https://zenodo.org/records/10782431/files/lysozyme_datasets.zip), and most likely with data_persitence: False.

  • Step 2: upload the workflow run in WorkflowHub.
  • Step 3: add the remote file as a reference in the workflow files:

    • Files tab -> Add File -> Remote URL.

    • Paste the remote URL (e.g. https://zenodo.org/records/10782431/files/lysozyme_datasets.zip).

    • Specify the file path in the crate (e.g. remote_dataset/lysozyme_datasets.zip).

Examples on workflows with remote datasets can be found at:

Tip

While the most common choice should be to use data_persistence: False to avoid including any datasets, a mix of automatically included small datasets, and remote large datasets can be achieved when using data_persistence: True. In any case, if data is persisted, the content of the dataset/ folder in the crate cannot be modified (i.e. remove files), because that would invalidate the correctness of the metadata.

Re-execute a COMPSs workflow published in WorkflowHub

Apart from sharing workflow runs as shown in earlier sections, the workflow execution published in WorkflowHub can be also used by other individuals in order to reproduce the results (i.e. submit the same workflow with the same inputs, and obtain the same results), therefore, other peers can verify the results of your experiments. To illustrate this process, we will use different examples:

When data_persistence is enabled, input and output datasets required or generated by the workflow are included in the crate. This makes reproducibility easier, but it is only convenient when datasets are of a reasonable size (e.g. tenths of MBs).

  • Click the DOI link of the workflow you want to re-execute (e.g. https://doi.org/10.48546/workflowhub.workflow.838.1).

  • Click on Download RO-Crate. The crate of the corresponding workflow will be downloaded to your machine (e.g. in ~/Downloads/).

  • Move and unzip the file in a new folder.

$ mkdir ~/workflow-838-1/
$ mv ~/Downloads/workflow-838-1.crate.zip ~/workflow-838-1/
$ cd ~/workflow-838-1/
$ unzip workflow-838-1.crate.zip

  • Create a new_outputs/ folder to avoid overwriting the included dataset/outputs/.

$ mkdir new_outputs/

  • Inspect the submission command, and re-execute the application adapting the flags and parameters. Avoid overwriting the original outputs of the application.

$ cat compss_submission_command_line.txt
  runcompss --provenance=matmul_reproducibility.yaml --python_interpreter=/Users/rsirvent/.pyenv/shims/python3 --cpu_affinity=disabled src/matmul_files.py inputs/ outputs/
$ runcompss application_sources/src/matmul_files.py dataset/inputs/ new_outputs/

  • Once the execution is finished, compare the new outputs generated with the outputs included in the crate.

$ diff new_outputs/ dataset/outputs/

Warning

If the application includes hardcoded paths, they will need to be manually modified in the code. However, in most of the cases, if the application has relative paths hardcoded, the application_sources/ folder could be used as the working directory (i.e. the folder from where you run your COMPSs application).

As seen in the examples above, the steps to reproduce a COMPSs workflow vary depending if the crate package downloaded includes the datasets (i.e. it has a dataset/ sub-folder). This is achieved when data_persistence is set to True in the YAML configuration file. Thus, the data preparation step will change depending on the availability of the dataset needed for the workflow execution. In addition, any external third party software used in the application (e.g. simulators, auxiliary libraries and packages, …), must be made available in the new execution environment. For simplicity, we will not go into the details on how to deal with this environment preparation and we will assume the target environment has all software dependencies ready to be used.

While the reproducibility process of a COMPSs workflow is quite manual at the moment, we plan to automate it using workflow provenance with the COMPSs CLI (see Section PyCOMPSs CLI). Anyway, reproducing executions in the same machine as the one in the published run (e.g. using the same supercomputer) should be quite straightforward, since the metadata may include references to the location of the inputs and outputs of the workflow. Therefore, the only requirement to reproduce a run would be to have access granted to the location where the inputs are.
