Application graph

At the end of the application execution a dependency graph can be generated representing the order of execution of each type of task and their dependencies. To allow the final graph generation the -g flag has to be passed to the runcompss command (alternative flags to the -g are the --graph or the --graph=true); the graph file is written in the <BASE_LOG_DIR>/monitor/complete_graph.dot at the end of the execution (<BASE_LOG_DIR> is usually $HOME/.COMPSs unless the --base_log_dir=<BASE_LOG_DIR> flag is specified).

Warning

Application graph generation is not supported using agents.

Figure 26 shows a dependency graph example of a SparseLU Java application. The graph can be converted from dot format to pdf format by running the following command:

compss@bsc:~$ compss_gengraph ~/.COMPSs/sparseLU.arrays.SparseLU_01/monitor/complete_graph.dot

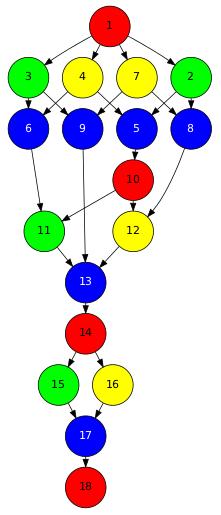

Figure 26 The dependency graph of the SparseLU application

When only the dot file is passed as a parameter, compss_gengraph creates a PDF image file by default, named complete_graph.pdf. However, a different image format can be selected by specifying any other format supported by GraphViz. Check the list of supported formats here, and verify also that they are supported in your system, since not all formats are available for all systems. An example on how to specify the format would be:

compss@bsc:~$ compss_gengraph svg ~/.COMPSs/sparseLU.arrays.SparseLU_01/monitor/complete_graph.dot

This would generate a complete_graph.svg output file that would contain the application’s workflow image in Scalable Vector Graphics (SVG) format.
