KNN
The K-Nearest Neighbors (KNN) classification algorithm is a supervised learning method for classification tasks.
It is based on the principle that similar data points tend to be close to one another in the feature space.
Let
denote a training dataset,
where each
is a feature vector and
is the corresponding label.
Given a query point
, the algorithm computes the distance to all training points, typically using the Euclidean metric:
It then selects the k closest samples,
, and for classification tasks, assigns the most frequent label among them:
where
is the indicator function.
Next we provide the main code of this application.
Code 175
task_knn.R# Copyright (c) 2025- King Abdullah University of Science and Technology,
# All rights reserved.
# RCOMPSs is a software package, provided by King Abdullah University of Science and Technology (KAUST) - STSDS Group.
# @file task_knn.R
# @brief This file contains the tasks of the KNN classification application
# @version 1.0
# @author Xiran Zhang
# @date 2025-04-28
DEBUG <- list(
KNN_fill_fragment = FALSE,
KNN_frag = FALSE,
KNN_merge = FALSE,
KNN_classify = FALSE
)
KNN_fill_fragment <- function(params_fill_fragment){
centres <- params_fill_fragment[[1]]
n <- params_fill_fragment[[2]]
# Obtain necessary numbers
nclass <- nrow(centres)
dim <- ncol(centres)
# Initialize the random points
frag <- matrix(nrow = n, ncol = dim + 1)
frag[,1:dim] <- matrix(rnorm(n * dim, sd = 0.1), nrow = n, ncol = dim)
# Assign to different groups
group_ind <- sample(1:nclass, n, replace = TRUE)
frag[,dim + 1] <- as.integer(group_ind)
frag[,1:dim] <- frag[,1:dim] + centres[group_ind, ]
return(frag)
}
KNN_frag <- function(train, test, k){
dimensions <- ncol(train) - 1
x_train <- train[,1:dimensions]
cl <- train[,dimensions+1]
x_test <- test[,1:dimensions]
if(DEBUG$KNN_frag){
cat(paste0("Starting KNN_frag, k = ", k, ", dimensions = ", dimensions, "\n"))
cat("x_train:\n"); print(x_train)
cat("cl:\n"); print(cl)
cat("x_test:\n"); print(x_test)
}
res_dist <- fields::rdist(x_test, x_train)
if(DEBUG$KNN_frag){
cat("res_dist1:\n"); print(res_dist)
}
res_cl <- t(apply(res_dist, 1, function(x) cl[sort(x, index.return = TRUE)$ix[1:k]]))
if(DEBUG$KNN_frag){
cat("res_cl:\n"); print(res_cl)
}
res_dist <- t(apply(res_dist, 1, function(x) sort(x)[1:k]))
if(DEBUG$KNN_frag){
cat("res_dist2:\n"); print(res_dist)
}
dist_cl <- cbind(res_dist, res_cl)
return(dist_cl)
}
KNN_merge <- function(...){
input <- list(...)
input_len <- length(input)
if(DEBUG$KNN_merge) {
cat("Doing KNN_merge\n")
for(i in 1:input_len){
cat("Input", i, "\n")
print(input[[i]])
}
}
if(input_len == 1){
return(input[[1]])
}else{
k <- ncol(input[[1]]) / 2
res_dist <- do.call(cbind, lapply(input, function(x) x[,1:k]))
res_cl <- do.call(cbind, lapply(input, function(x) x[,(k+1):(2*k)]))
ntest <- nrow(res_dist)
if(DEBUG$KNN_merge) {
cat("Doing KNN_merge\n")
cat("k =", k, "\n")
cat("input_len of KNN_merge:", input_len, "\n")
cat("typeof(res_dist):", typeof(res_dist), "\n")
cat("class(res_dist):", class(res_dist), "\n")
cat("dim(res_dist):", dim(res_dist), "\n")
cat("res_dist before merge:\n"); print(res_dist)
cat("res_cl before merge:\n"); print(res_cl)
}
sorted_distance_ind <- t(apply(res_dist, 1, function(d) sort(d, index.return = TRUE)$ix[1:k]))
res_dist <- matrix(res_dist[cbind(1:ntest, c(sorted_distance_ind))], nrow = ntest, ncol = k)
res_cl <- matrix(res_cl[cbind(1:ntest, c(sorted_distance_ind))], nrow = ntest, ncol = k)
dist_cl <- cbind(res_dist, res_cl)
if(DEBUG$KNN_merge) {
cat("sorted_distance_ind:\n")
print(sorted_distance_ind)
cat("res_dist after merge:\n")
print(res_dist)
cat("res_cl after merge:\n")
print(res_cl)
cat("dist_cl:\n")
print(dist_cl)
}
return(dist_cl)
}
}
KNN_classify <- function(...){
input <- list(...)
if(DEBUG$KNN_classify) {
cat("Doing KNN_classify\n")
print(input)
}
if(length(input) > 1){
final_merge <- do.call(KNN_merge, list(...))
}else{
final_merge <- input[[1]]
}
if(DEBUG$KNN_classify) {
cat("final_merge:\n"); print(final_merge)
}
k <- ncol(final_merge) / 2
final_cl <- final_merge[,(k+1):(2*k)]
KNN_get_mode <- function(x) {
ux <- unique(x)
ux[which.max(tabulate(match(x, ux)))]
}
predictions <- apply(final_cl, 1, KNN_get_mode)
if(DEBUG$KNN_classify) {
cat("predictions:\n"); print(predictions)
}
return(predictions)
}
Code 176
function_knn.R# Copyright (c) 2025- King Abdullah University of Science and Technology,
# All rights reserved.
# RCOMPSs is a software package, provided by King Abdullah University of Science and Technology (KAUST) - STSDS Group.
# @file function_knn.R
# @brief This file contains the functions for the KNN classification application
# @version 1.0
# @author Xiran Zhang
# @date 2025-04-28
KNN <- function(train, test, k, use_RCOMPSs = FALSE){
num_frag_train <- length(train)
num_frag_test <- length(test)
RES <- vector("list", num_frag_test)
if(use_RCOMPSs){
for(i in 1:num_frag_test){
RES[[i]] <- vector("list", num_frag_train)
for(j in 1:num_frag_train){
RES[[i]][[j]] <- task.KNN_frag(train[[j]], test[[i]], k)
}
while(length(RES[[i]]) > arity){
RES_subset <- RES[[i]][1:arity]
RES[[i]] <- RES[[i]][(arity + 1):length(RES[[i]])]
RES[[i]][[length(RES[[i]]) + 1]] <- do.call(task.KNN_merge, RES_subset)
}
RES[[i]] <- do.call(task.KNN_classify, RES[[i]])
}
}else{
for(i in 1:num_frag_test){
RES[[i]] <- vector("list", num_frag_train)
for(j in 1:num_frag_train){
RES[[i]][[j]] <- KNN_frag(train[[j]], test[[i]], k)
}
while(length(RES[[i]]) > arity){
RES_subset <- RES[[i]][1:arity]
RES[[i]] <- RES[[i]][(arity + 1):length(RES[[i]])]
RES[[i]][[length(RES[[i]]) + 1]] <- do.call(KNN_merge, RES_subset)
}
RES[[i]] <- do.call(KNN_classify, RES[[i]])
}
}
return(RES)
}
######################################################################################
######################################################################################
### Process arguments
parse_arguments <- function(Minimize) {
if(!Minimize){
cat("Starting parse_arguments\n")
}
args <- commandArgs(trailingOnly = TRUE)
# Define default values
# Note that if `num_fragments` is not a factor of `numpoints`, the last fragment may give NA due to lack of points.
seed <- 1
n_train <- 1000
n_test <- 200
dimensions <- 2
num_class <- 5
fragments_train <- 5
fragments_test <- 5
k <- 3
arity <- 2
# Execution using RCOMPSs
use_RCOMPSs <- FALSE
# Execution using default R function
use_R_default <- FALSE
# asking for help
is.asking_for_help <- FALSE
# Confusion matrix?
confusion_matrix <- FALSE
# plot?
needs_plot <- FALSE
# Parse arguments
if(length(args) >= 1){
for (i in 1:length(args)) {
if (args[i] == "-s") {
seed <- as.integer(args[i + 1])
} else if (args[i] == "--seed") {
seed <- as.integer(args[i + 1])
} else if (args[i] == "-n") {
n_train <- as.integer(args[i + 1])
} else if (args[i] == "--n_train") {
n_train <- as.integer(args[i + 1])
} else if (args[i] == "-N"){
n_test <- as.integer(args[i + 1])
} else if (args[i] == "--n_test") {
n_test <- as.integer(args[i + 1])
} else if (args[i] == "-d") {
dimensions <- as.integer(args[i + 1])
} else if (args[i] == "--dimensions") {
dimensions <- as.integer(args[i + 1])
} else if (args[i] == "-c") {
num_class <- as.integer(args[i + 1])
} else if (args[i] == "--num_class") {
num_class <- as.integer(args[i + 1])
} else if (args[i] == "-f") {
fragments_train <- as.integer(args[i + 1])
} else if (args[i] == "--fragments_train") {
fragments_train <- as.integer(args[i + 1])
} else if (args[i] == "-F") {
fragments_test <- as.integer(args[i + 1])
} else if (args[i] == "--fragments_test") {
fragments_test <- as.integer(args[i + 1])
} else if (args[i] == "-k") {
k <- as.integer(args[i + 1])
} else if (args[i] == "--knn") {
k <- as.integer(args[i + 1])
} else if (args[i] == "-a") {
arity <- as.integer(args[i + 1])
} else if (args[i] == "--arity") {
arity <- as.integer(args[i + 1])
} else if (args[i] == "-m") {
confusion_matrix <- TRUE
} else if (args[i] == "--confusion_matrix") {
confusion_matrix <- TRUE
} else if (args[i] == "-p") {
needs_plot <- as.logical(args[i + 1])
} else if (args[i] == "--plot") {
needs_plot <- as.logical(args[i + 1])
} else if (args[i] == "-C") {
use_RCOMPSs <- TRUE
} else if (args[i] == "--RCOMPSs") {
use_RCOMPSs <- TRUE
} else if (args[i] == "-R") {
use_R_default <- TRUE
} else if (args[i] == "--R-default") {
use_R_default <- TRUE
} else if (args[i] == "-h") {
is.asking_for_help <- TRUE
} else if (args[i] == "--help") {
is.asking_for_help <- TRUE
}
}
}
if(is.asking_for_help){
cat("Usage: Rscript knn.R [options]\n")
cat("Options:\n")
cat(" -s, --seed <seed> Seed for random number generator\n")
cat(" -n, --n_train <n_train> Number of training points\n")
cat(" -N, --n_test <n_test> Number of testing points\n")
cat(" -d, --dimensions <dimensions> Number of dimensions\n")
cat(" -c, --num_class <num_class> Number of classes\n")
cat(" -f, --fragments_train <fragments_train> Number of fragments of training data\n")
cat(" -F, --fragments_test <fragments_test> Number of fragments of testing data\n")
cat(" -k, --knn <k> Number of the nearest neighbours to consider\n")
cat(" -a, --arity <arity> Reduction arity\n")
cat(" -p, --plot <needs_plot> Boolean: Plot?\n")
cat(" -m, --confusion_matrix <confusion_matrix> Flag: confusion_matrix?\n")
cat(" -C, --RCOMPSs <use_RCOMPSs> Flag: Use RCOMPSs parallelization?\n")
cat(" -R, --R-default <use_R_default> Flag: Use default knn function to compute?\n")
cat(" -h, --help Show this help message\n")
q(status = 0)
}
if(n_train %% fragments_train != 0){
stop("Number of fragment_train is not a factor of n_train!\n")
}
if(n_test %% fragments_test != 0){
stop("Number of fragment_test is not a factor of n_test!\n")
}
return(list(
seed = seed,
n_train = n_train,
n_test = n_test,
dimensions = dimensions,
num_class = num_class,
num_fragments_train = fragments_train,
num_fragments_test = fragments_test,
k = k,
arity = arity,
confusion_matrix = confusion_matrix,
needs_plot = needs_plot,
use_RCOMPSs = use_RCOMPSs,
use_R_default = use_R_default
))
}
print_parameters <- function(params) {
cat("Parameters:\n")
cat(sprintf(" Seed: %d\n", params$seed))
cat(sprintf(" Number of training points: %d\n", params$n_train))
cat(sprintf(" Number of testing points: %d\n", params$n_test))
cat(sprintf(" Dimensions: %d\n", params$dimensions))
cat(sprintf(" Number of class: %d\n", params$num_class))
cat(sprintf(" Number of fragments of training data: %d\n", params$num_fragments_train))
cat(sprintf(" Number of fragments of testing data: %d\n", params$num_fragments_test))
cat(sprintf(" K: %d\n", params$k))
cat(sprintf(" Arity: %d\n", params$arity))
cat(" confusion_matrix:", params$confusion_matrix, "\n")
cat(" needs_plot:", params$needs_plot, "\n")
cat(" use_RCOMPSs:", params$use_RCOMPSs, "\n")
cat(" use_R_default:", params$use_R_default, "\n")
}
Code 177
knn.R# Copyright (c) 2025- King Abdullah University of Science and Technology,
# All rights reserved.
# RCOMPSs is a software package, provided by King Abdullah University of Science and Technology (KAUST) - STSDS Group.
# @file knn.R
# @brief This file contains the tasks of the KNN classification application
# @version 1.0
# @author Xiran Zhang
# @date 2025-04-28
# This application requires two extra packages: caret, ggplot2
flush.console()
Sys.sleep(1)
args <- commandArgs(trailingOnly = TRUE)
Minimize <- FALSE
# Parse arguments
if(length(args) >= 1){
for (i in 1:length(args)) {
if (args[i] == "-M") {
Minimize <- TRUE
} else if (args[i] == "--Minimize") {
Minimize <- TRUE
}
}
}
# Source necessary functions
if(!Minimize){
cat("Sourcing necessary functions ... ")
}
source("task_knn.R")
source("function_knn.R")
if(!Minimize){
cat("Done.\n")
}
if(!Minimize){
cat("Getting parameters ... ")
}
params <- parse_arguments(Minimize)
if(!Minimize){
print_parameters(params)
}
attach(params)
if(!Minimize){
cat("Done.\n")
}
set.seed(seed)
if(use_RCOMPSs){
require(RCOMPSs)
# Initiate COMPSs
if(!Minimize){
cat("Starting COMPSs ... ")
}
compss_start()
cat("COMPSs started!")
flush.console()
if(!Minimize){
cat("Done.\n")
}
# Define the tasks
if(!Minimize){
cat("Defining the tasks ... ")
}
task.KNN_fill_fragment <- task(KNN_fill_fragment, "task_knn.R", return_value = TRUE, DEBUG = FALSE)
task.KNN_frag <- task(KNN_frag, "task_knn.R", return_value = TRUE, DEBUG = FALSE)
task.KNN_merge <- task(KNN_merge, "task_knn.R", return_value = TRUE, DEBUG = FALSE)
task.KNN_classify <- task(KNN_classify, "task_knn.R", return_value = TRUE, DEBUG = FALSE)
if(!Minimize){
cat("Done.\n")
}
}else{
if(!Minimize){
cat("Sequential execution without RCOMPSs!\n")
}
}
for(replicate in 1:1){
start_time <- proc.time()
# Generate data
if(!Minimize){
cat("Generating data replicate", replicate, "... ")
}
points_per_fragment_train <- max(1, n_train %/% num_fragments_train)
points_per_fragment_test <- max(1, n_test %/% num_fragments_test)
# Generate cluster central points
true_centres <- matrix(runif(num_class * dimensions),
nrow = num_class, ncol = dimensions)
params_train <- list(centres = true_centres, n = points_per_fragment_train)
params_test <- list(centres = true_centres, n = points_per_fragment_test)
x_train <- vector("list", num_fragments_train)
x_test <- vector("list", num_fragments_test)
if(use_RCOMPSs){
for(f in 1:num_fragments_train){
x_train[[f]] <- task.KNN_fill_fragment(params_train)
}
for(f in 1:num_fragments_test){
x_test[[f]] <- task.KNN_fill_fragment(params_test)
}
}else{
for(f in 1:num_fragments_train){
x_train[[f]] <- KNN_fill_fragment(params_train)
}
for(f in 1:num_fragments_test){
x_test[[f]] <- KNN_fill_fragment(params_test)
}
}
initialization_time <- proc.time()
if(!Minimize){
cat("Done.\n")
}
# Run KNN
res_KNN <- KNN(train = x_train, test = x_test, k = k, use_RCOMPSs)
if(!Minimize){
if(use_RCOMPSs){
res_KNN <- compss_wait_on(res_KNN)
}
PRED <- do.call(c, res_KNN)
}else if(use_RCOMPSs){
compss_barrier(FALSE)
}
knn_time <- proc.time()
Initialization_time <- initialization_time[3] - start_time[3]
KNN_time <- knn_time[3] - initialization_time[3]
Total_time <- proc.time()[3] - start_time[3]
Initialization_time <- round(Initialization_time, 3)
KNN_time <- round(KNN_time, 3)
Total_time <- round(Total_time, 3)
cat("-----------------------------------------\n")
cat("-------------- RESULTS ------------------\n")
cat("-----------------------------------------\n")
cat("Initialization time:", Initialization_time, "seconds\n")
cat("KNN time:", KNN_time, "seconds\n")
cat("Total time:", Total_time, "seconds\n")
cat("-----------------------------------------\n")
if(Minimize){
cat("KNN_RES,seed,n_train,n_test,dimensions,num_class,k,arity,confusion_matrix,needs_plot,use_RCOMPSs,use_R_default,Minimize,Initialization_time,KNN_time,Total_time,replicate\n")
cat(paste0("KNN_res,", seed, ",", n_train, ",", n_test, ",", dimensions, ",", num_class, ",", k, ",", arity, ",", confusion_matrix, ",", needs_plot, ",", use_RCOMPSs, ",", use_R_default, ",", Minimize, ",", Initialization_time, ",", KNN_time, ",", Total_time, ",", replicate, "\n"))
}
if(!Minimize){
PRED <- as.factor(as.numeric(PRED))
if(confusion_matrix){
cat("Confusion Matrix:\n")
if(use_RCOMPSs) x_test <- compss_wait_on(x_test)
x_test <- do.call(rbind, x_test)
cm <- caret::confusionMatrix(data = PRED, reference = as.factor(x_test[,ncol(x_test)]))
print(cm)
}else{
cat("Result of KNN:\n")
print(PRED)
}
cat("-----------------------------------------\n")
}
if(use_R_default){
res_knn <- class::knn(train = x_train[,1:dimensions], test = x_test[,1:dimensions], cl = x_train[,dimensions], k = k)
if(confusion_matrix){
cm <- caret::confusionMatrix(data = res_knn, reference = as.factor(x_test[,ncol(x_test)]))
print(cm)
}else{
print(res_knn)
}
if(!identical(res_knn, res_KNN)){
cat("+++++++++++++++++++++++++++++++++++")
cat("\n\033[31;1;4mWrong result!\n\033[0m")
}else{
cat("+++++++++++++++++++++++++++++++++++")
cat("\n\033[32;1;4mCorrect result!\n\033[0m")
}
}
# Plot the data
if(needs_plot){
x_train <- do.call(rbind, x_train)
class <- as.factor(x_train[,dimensions + 1])
x <- x_train[,1]
y <- x_train[,2]
library(ggplot2)
p <- ggplot() +
geom_point(aes(x = x, y = y, colour = class,
shape = "Training data"), size = 3) +
geom_point(aes(x = x_test[,1], y = x_test[,2], color = PRED,
shape = "Testing data"))
ggsave("plot_knn.pdf", plot = p, device = "pdf", width = 8, height = 8)
}
}
if(use_RCOMPSs){
compss_stop()
}
Next we run the KNN application with the -g option to be able to
generate the final graph at the end of the execution.
compss@bsc:~/tutorial_apps/r/knn$ runcompss --lang=r -g knn.R --seed 2 --n_train 1000 --n_test 2000 --dimensions 10 --num_class 5 --fragments_train 5 --fragments_test 10 --knn 5 --arity 5 --RCOMPSs --Minimize
[ INFO ] Using default location for project file: /opt/COMPSs//Runtime/configuration/xml/projects/default_project.xml
[ INFO ] Using default location for resources file: /opt/COMPSs//Runtime/configuration/xml/resources/default_resources.xml
[ INFO ] Using default execution type: compss
----------------- Executing knn.R --------------------------
[(951) API] - Starting COMPSs Runtime v3.4 (build 20250515-0858.rb6a767530b0120119c45956d05fa3a1578cad401)
COMPSs started!
-----------------------------------------
-------------- RESULTS ------------------
-----------------------------------------
Initialization time: 0,044 seconds
KNN time: 9,881 seconds
Total time: 9,925 seconds
-----------------------------------------
KNN_RES,seed,n_train,n_test,dimensions,num_class,k,arity,confusion_matrix,needs_plot,use_RCOMPSs,use_R_default,Minimize,Initialization_time,KNN_time,Total_time,replicate
KNN_res,2,1000,2000,10,5,5,2,FALSE,FALSE,TRUE,FALSE,TRUE,0,044,9,881,9,925,1
[(14500) API] - Execution Finished
------------------------------------------------------------
By running the compss_gengraph command users can obtain the task
graph of the above execution. Next we provide the set of commands to
obtain the graph show in Figure 87.
compss@bsc:~$ cd ~/.COMPSs/knn.R_01/monitor/
compss@bsc:~/.COMPSs/knn.R_01/monitor$ compss_gengraph complete_graph.dot
compss@bsc:~/.COMPSs/knn.R_01/monitor$ evince complete_graph.pdf

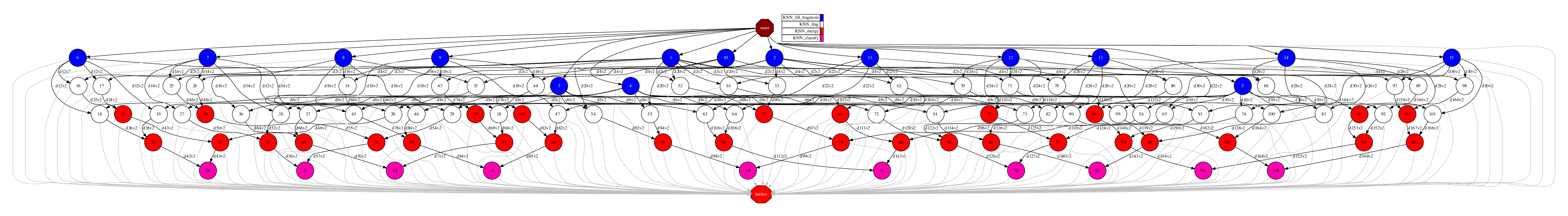

Figure 87 R KNN tasks graph
